Ricoh D014 - Rear Covers

Common Procedures
SM 3-11 D014/D015/D078/D079
Replacement
Adjustment
3.2.6 REAR COVERS

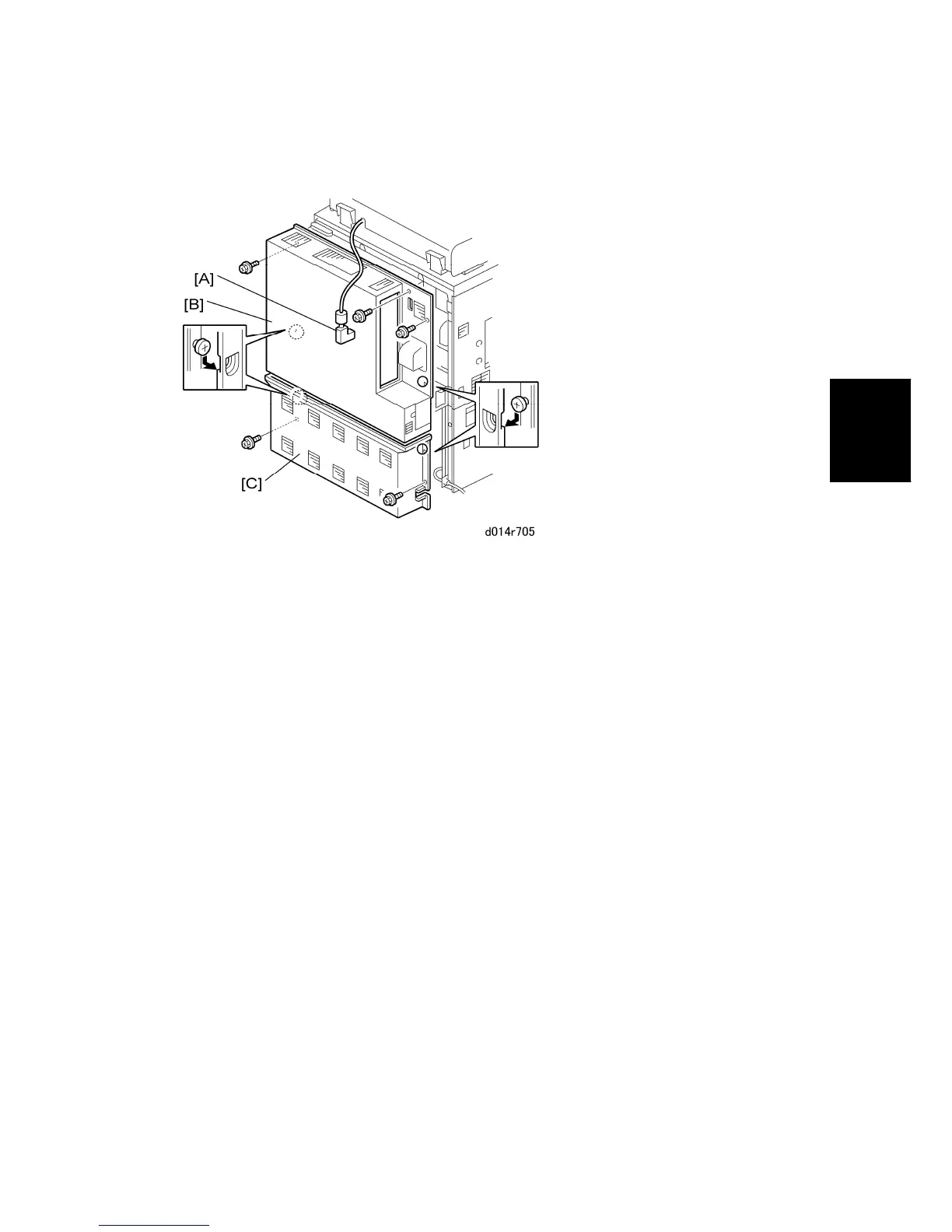

1. Remove:
[A]: ARDF connector ( x1)
[B]: Rear upper cover ( x3)
[C]: Rear lower cover ( x2)
 Remove the bottom screws
 Do not remove the shoulder screws.
