Motors
D014/D015/D078/D079 3-130 SM
3.9.4 FUSING/EXIT MOTOR

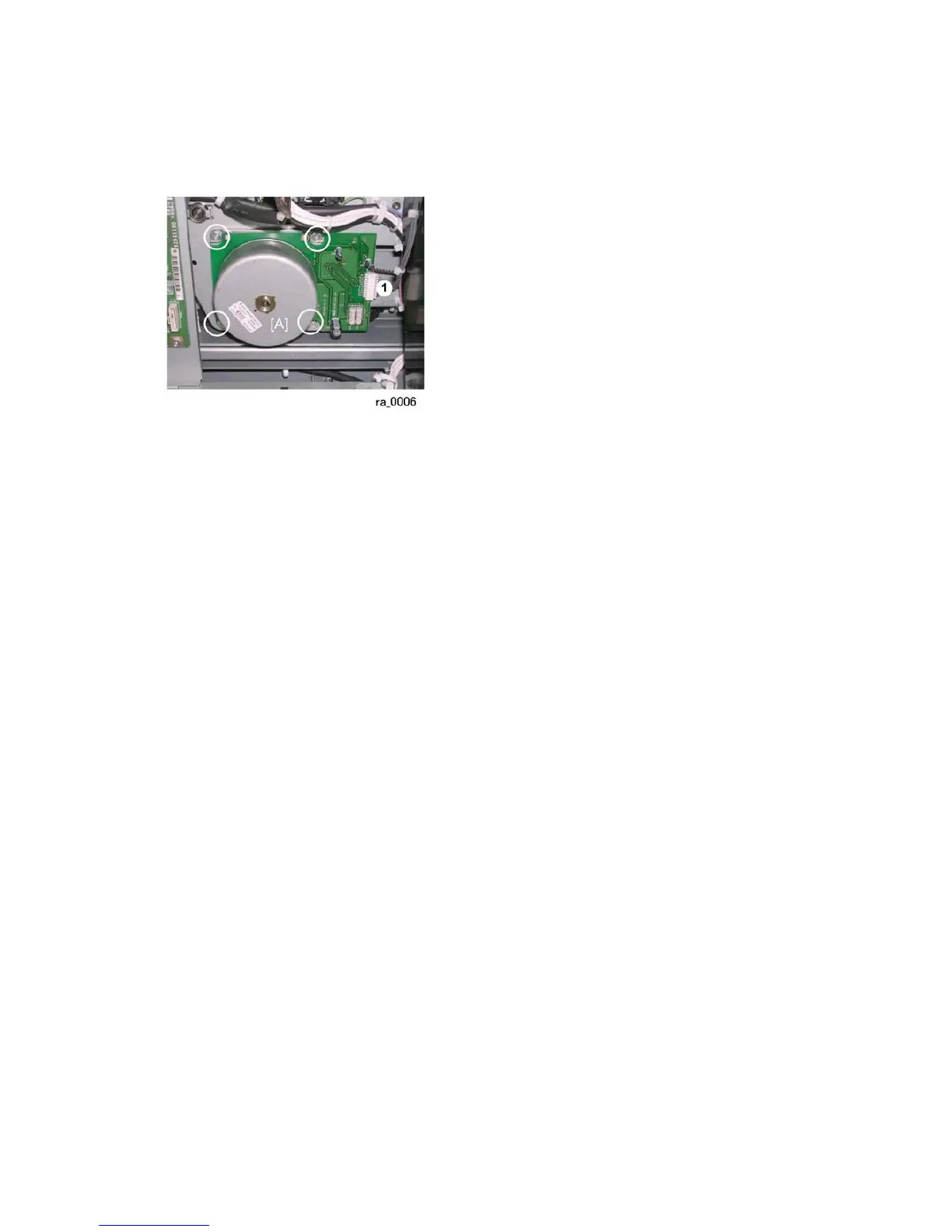

1. Remove the paper transfer motor [A] ( x1, x4).
