1.6 SHIFT TRAY
1.6.1 SHIFT TRAY EXIT, SHIFT TRAY LIFT MOTOR

Shift Tray Exit Motor

Shift Tray Lift Motor
Shift Tray Exit Motor
• Rear cover (

1.1.4)

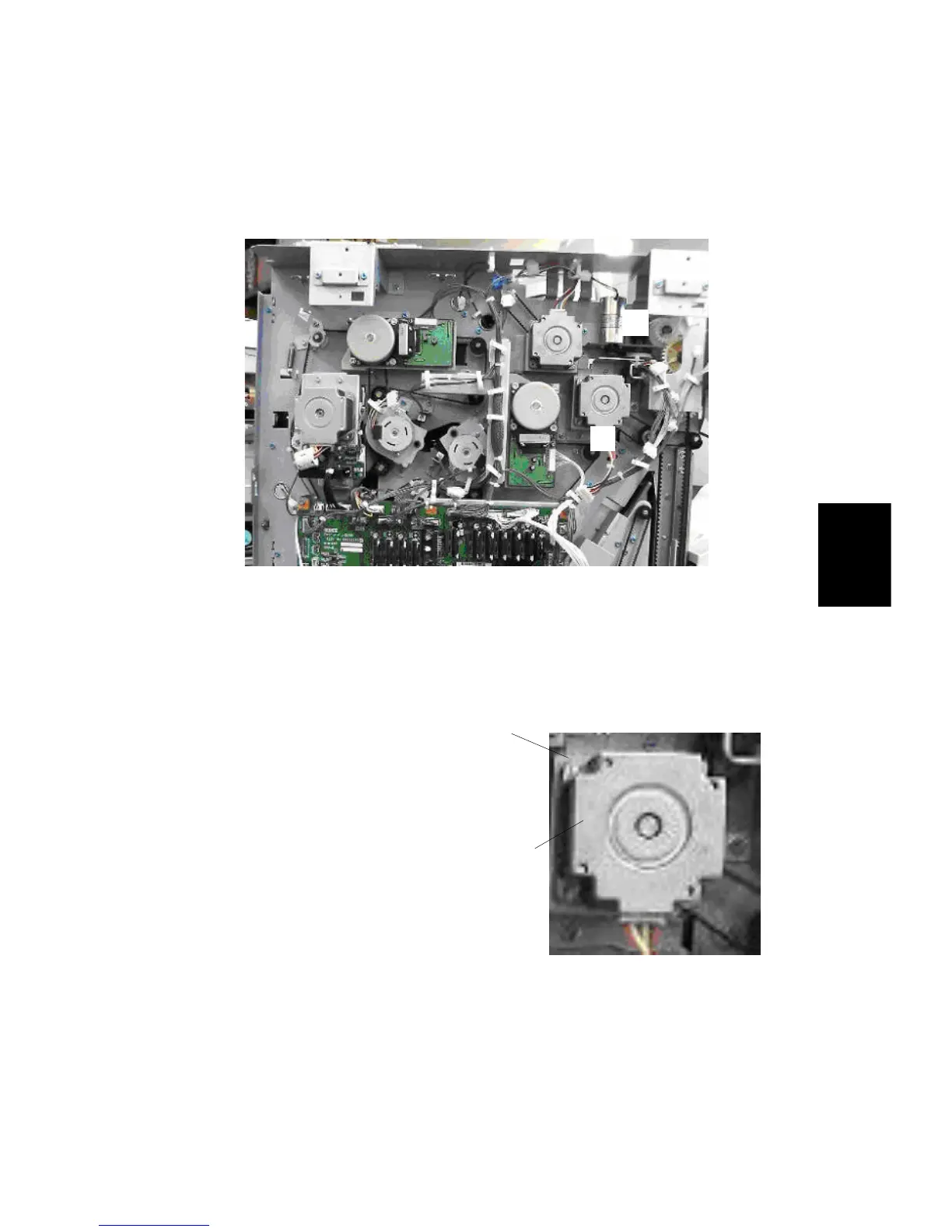

[A] Shift tray exit motor bracket
( x2,  x1,  X1, Timing belt x1)
[B] Shift tray exit motor (

x2)


[A]
[B]
