Ricoh D014 - Excess Toner Collection Coils

Used Toner Collection
D014/D015/D078/D079 6-32 SM

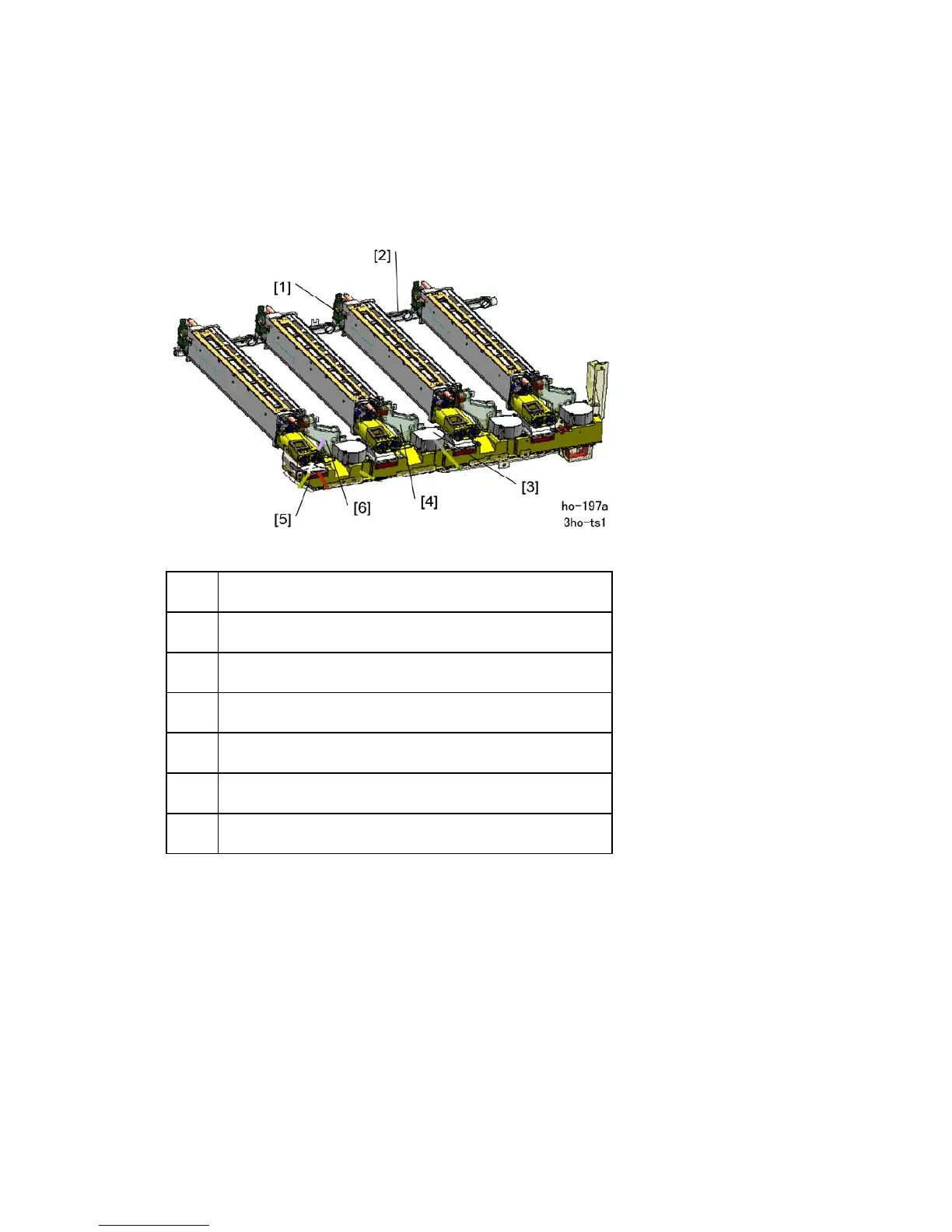

6.7.2 EXCESS TONER COLLECTION COILS
1
Excess Developer Coil*
1
2 Horizontal Used Toner Transport Coil
3
Cooling Fan 2 (Doctor Blade)*
1
4
Cooling Duct 2 (Development Doctor Blade)*
1
5 Cooling Fan 1 (Below Development Unit)
6 Cooling Duct 1 (Below Development Unit)
*
1
These are new items.
An excess developer coil has been added to each PCU in order to transport excess toner
from the development unit.
