Paper Handling
SM 23 D350
D350
RT4000
A3/12 x 18
LCT
2.2.5 LIFT SENSOR

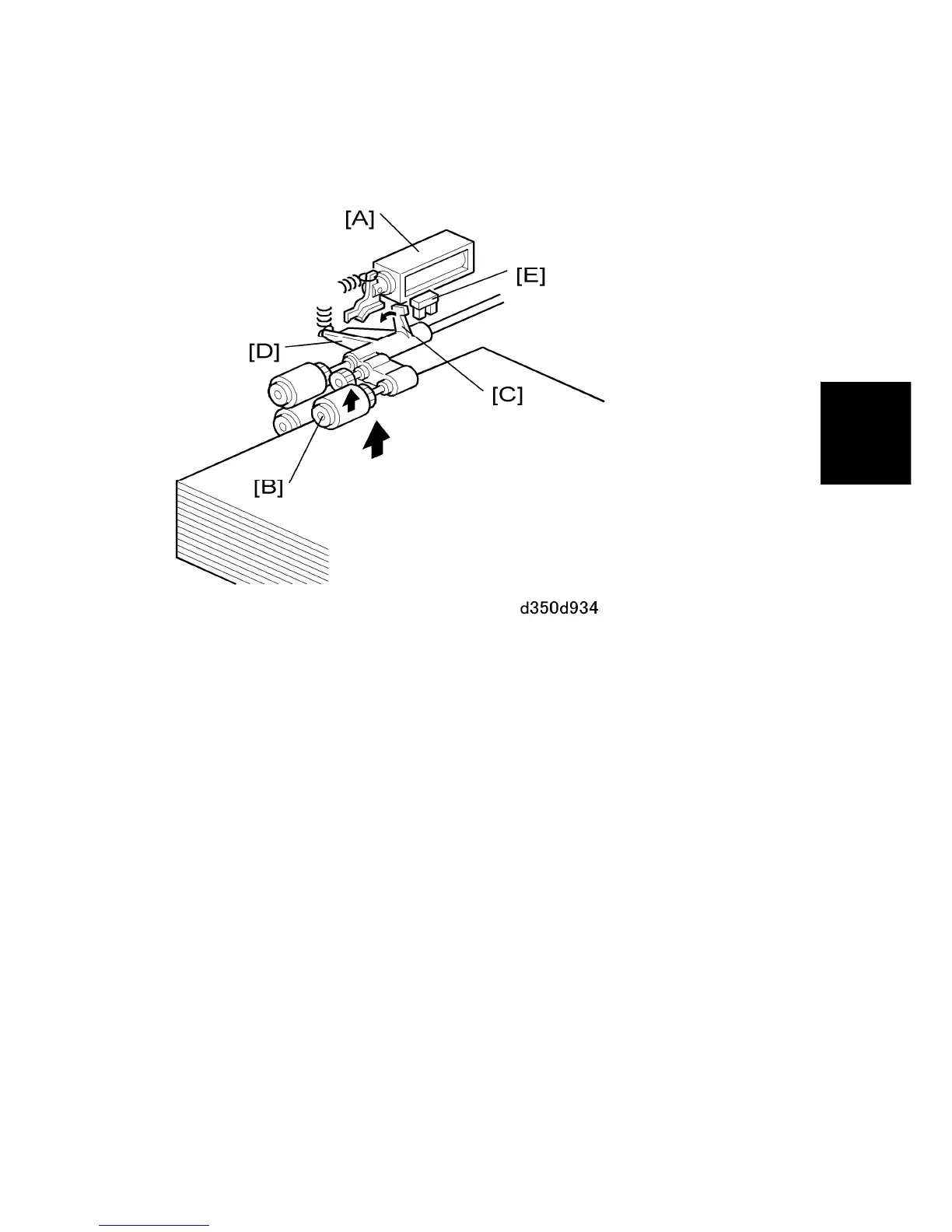

When the lift motor turns on, the pick-up solenoid [A] activates to lower the pick-up roller [B].
When the top sheet of paper reaches the proper paper feed level, the paper pushes up the
pick-up roller and the actuator [C] on the pick-up roller supporter [D] de-activates the lift
sensor [E] to stop the lift motor.
After several paper feeds, the paper level gradually lowers, then the lift sensor is activated
and the lift motor turns on again until the lift sensor is de-activated again.
