Ricoh D014 - Duplex Unit

Common Procedures
SM 3-21 D014/D015/D078/D079
Replacement
Adjustment
3.2.10 DUPLEX UNIT

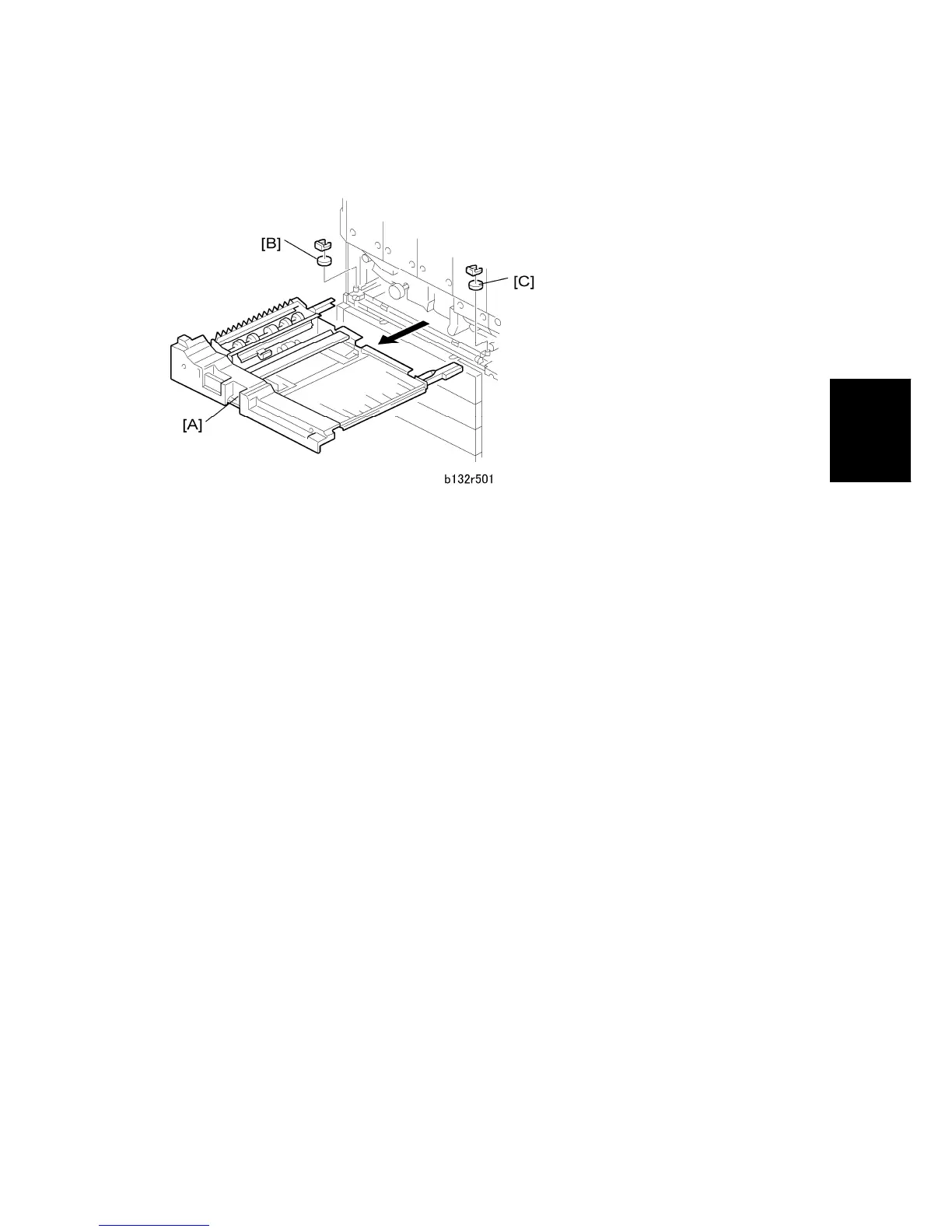

1. Open the front door.
2. Pull the duplex unit [A] out until it stops.
3. Remove the Teflon ring [B] from the left rear corner ( x1).
4. Remove the Teflon ring [C] from the right rear corner ( x1).
5. Lift the duplex unit from the rails and place it on a flat, level surface.
