PAPER MISFEED DETECTION TIMING
B762 10 SM

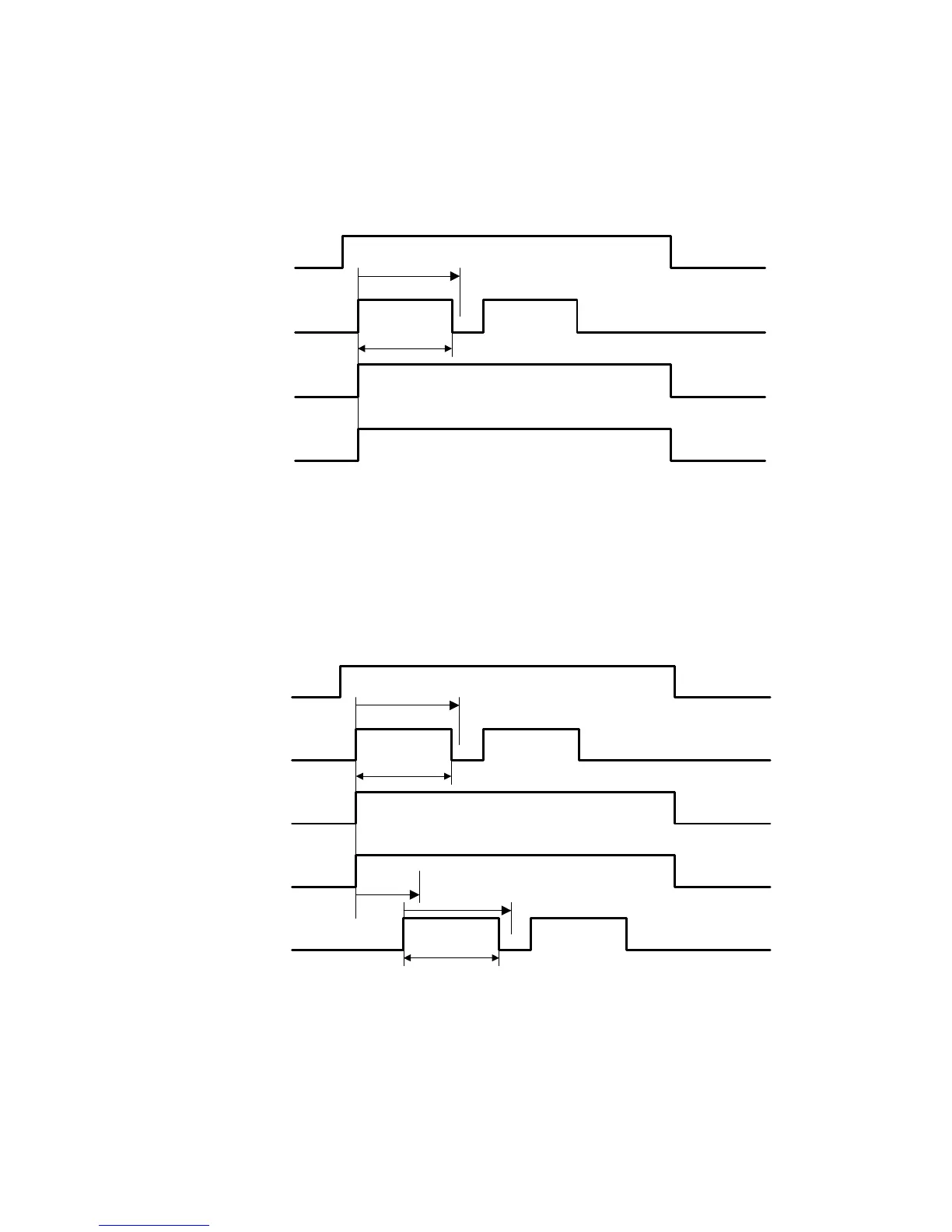

2.4 PAPER MISFEED DETECTION TIMING
2.4.1 A4 SIDEWAYS (LEF) → 1ST BIN TRAY
2.4.2 A4 SIDEWAYS (LEF) → 2ND ~ 9TH BIN TRAY
Main Motor
(Main Unit)
Exit Sensor
Main Motor
(Mailbox)
Turn Gate
(SOL 1)
J1
*1
*1: Time required for A4 LEF
B471D011.WMF
Main Motor
(Main Unit)
Exit Sensor
Main Motor
(Mailbox)
Turn Gate
(SOL 2)
J1
*1
*1: Time required for A4 Sideways (LEF)
*2: Feed to 9th Tray: All SOLs OFF.
Vertical Transport
Sensor
*1
J2
J3
B471D012.WMF
