REPLACEMENT AND ADJUSTMENT

B835 22 SM

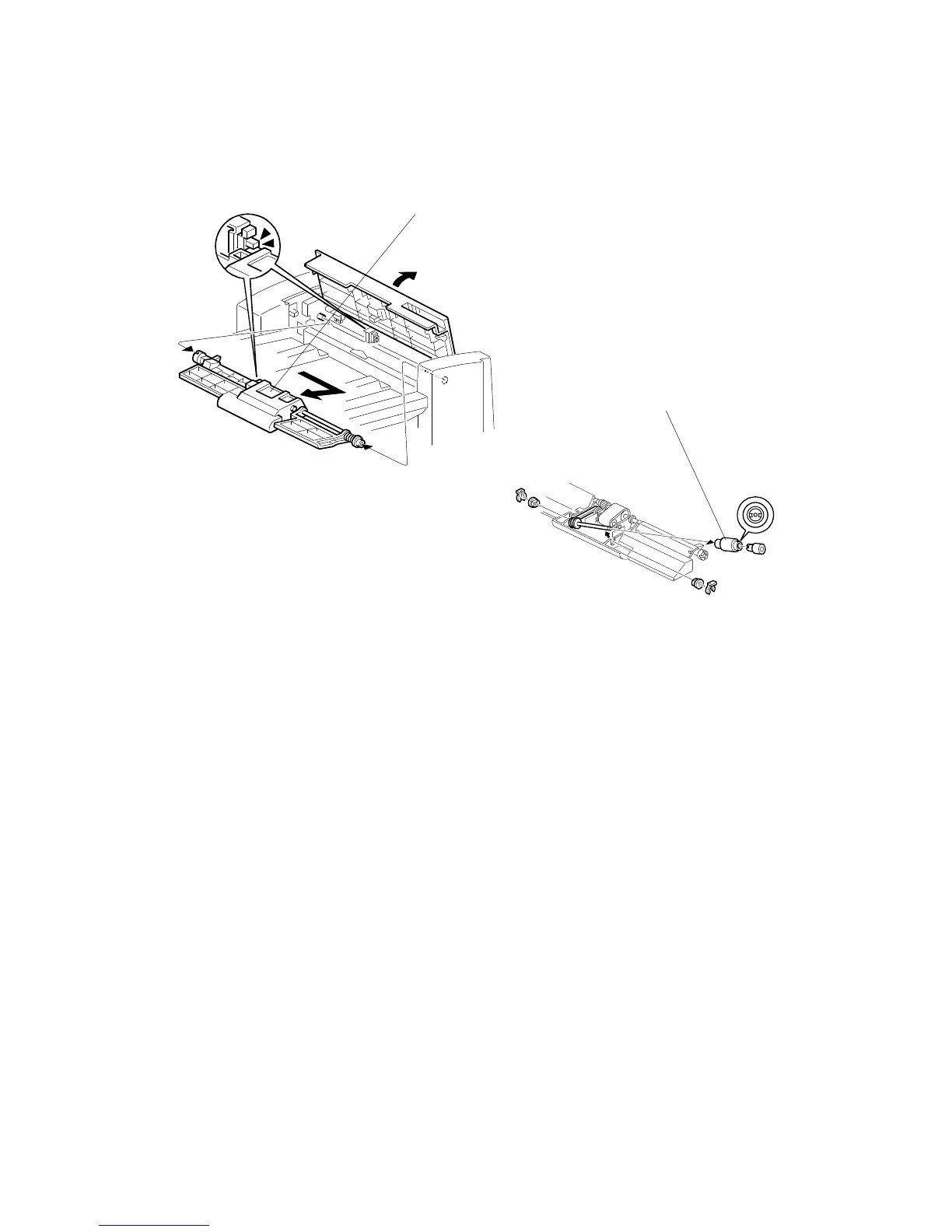

1.7.2 FEED BELT UNIT AND PICK-UP ROLLER

• Open the 1st tray cover.

[A]: Feed belt unit

• The unit is spring loaded. Push it to the right to release it, then lift it out.

[B]: Pick-up roller (



x 2, bushings x 2)

B835R101.WMF

B835R102.WMF

[A]

[B]
