Differences Between the D014/D015 & B132/B200
D014/D015/D078/D079 D-38 SM
FUSING UNIT
A fusing belt and three fusing rollers comprise the new fusing unit. The rollers are the
heating roller (fusing lamps x3), pressure roller (fusing lamp x1), and hot roller (no fusing
lamps). The hot roller is composed of a new, soft sponge material that creates a wider nip
band where a more even pressure is applied for fusing.

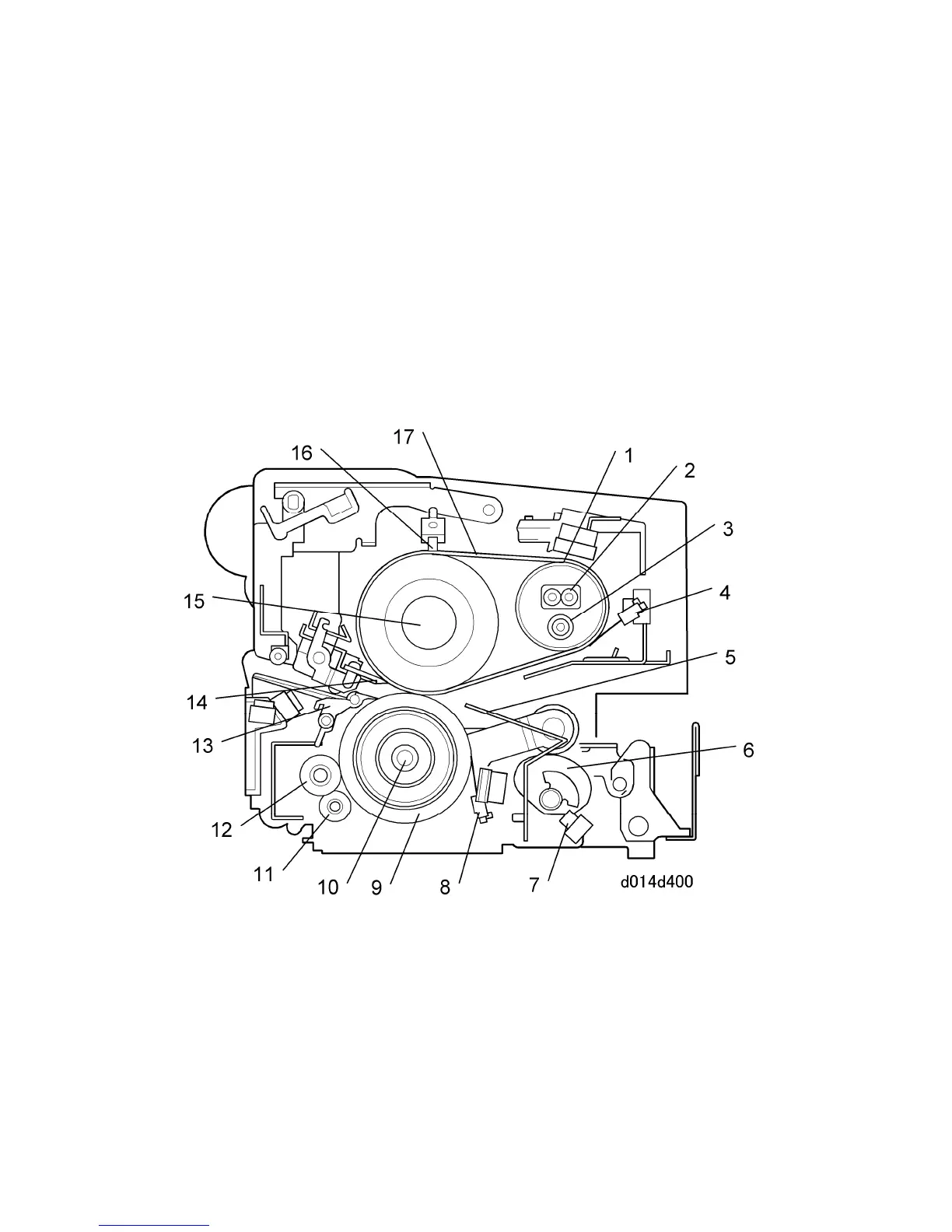

GENERAL LAYOUT OF FUSING UNIT
