Image Transfer Unit
D014/D015/D078/D079 3-80 SM

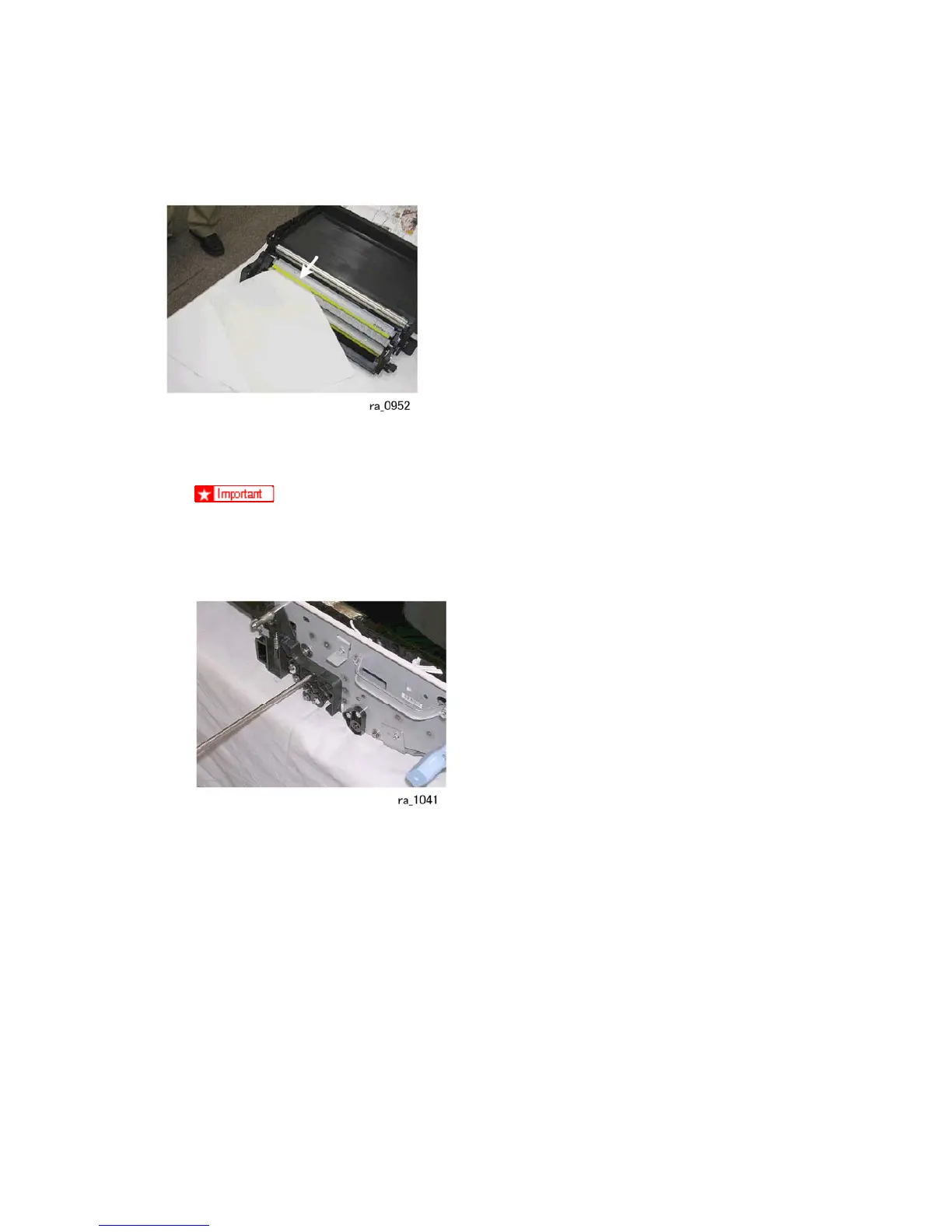

Reassembling the Belt Unit and Cleaning Unit
1. Insert one sheet of A4/LT paper under the lubricant blade as shown to protect the
corner seals of the belt cleaning unit.
The paper should be under the under the blade as shown above, not over the
blade.
2. Lower the belt unit [A] onto the cleaning unit [B].
3. Reassemble the belt unit and belt cleaning unit.
