Image Transfer Unit
SM 3-81 D014/D015/D078/D079
Replacement
Adjustment

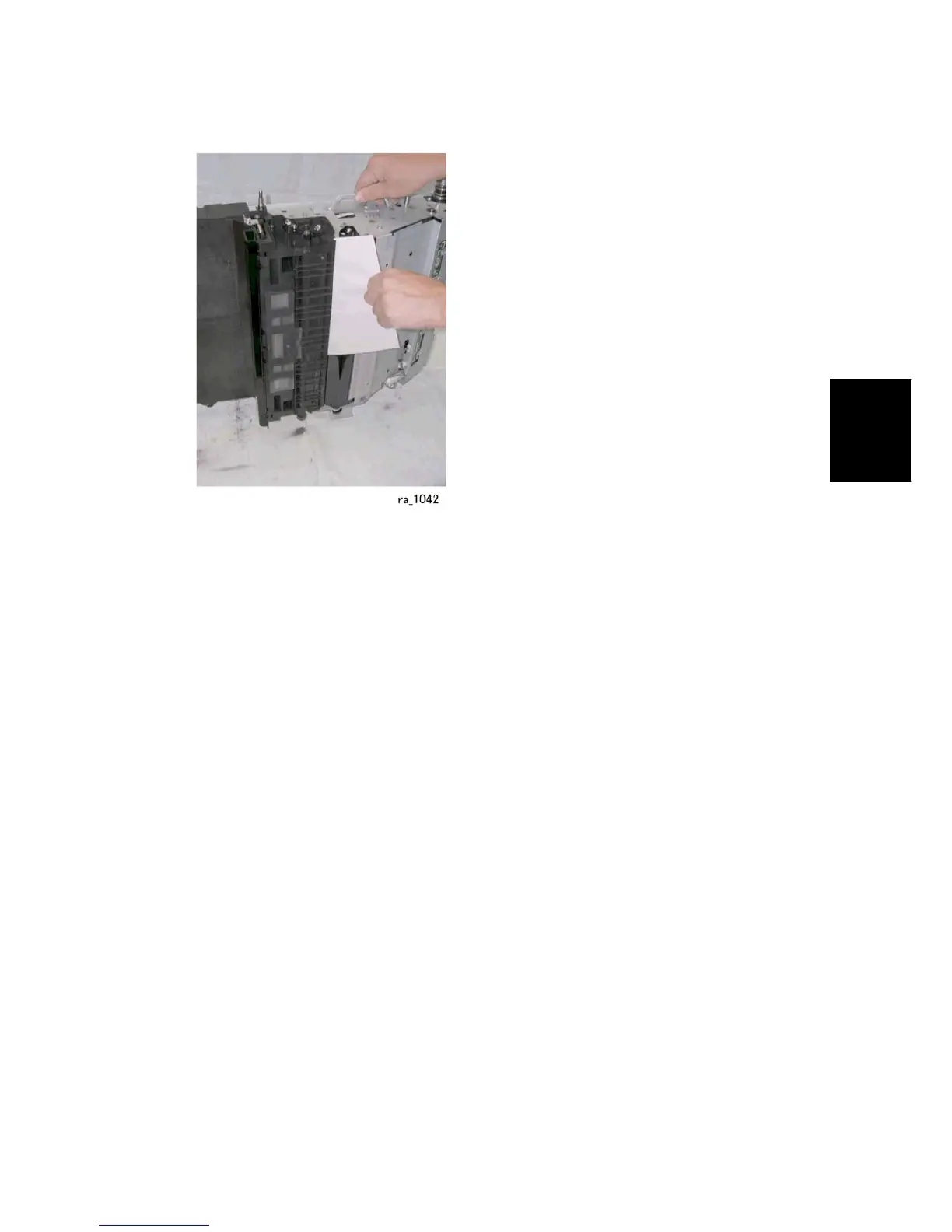

4. Set the reassembled ITB unit on end as shown.
5. Pull the paper out slowly.
6. Check the paper.
If the paper is unmarked, go to the next step.
-or-
If the paper is creased or torn, separate the image transfer belt and cleaning unit.
Inspect the seal. If the seal is damaged, replace it.
