Ricoh D014 - 2 Details; Overview; Main Component Layout

OVERVIEW
B762 4 SM
2. DETAILS
2.1 OVERVIEW

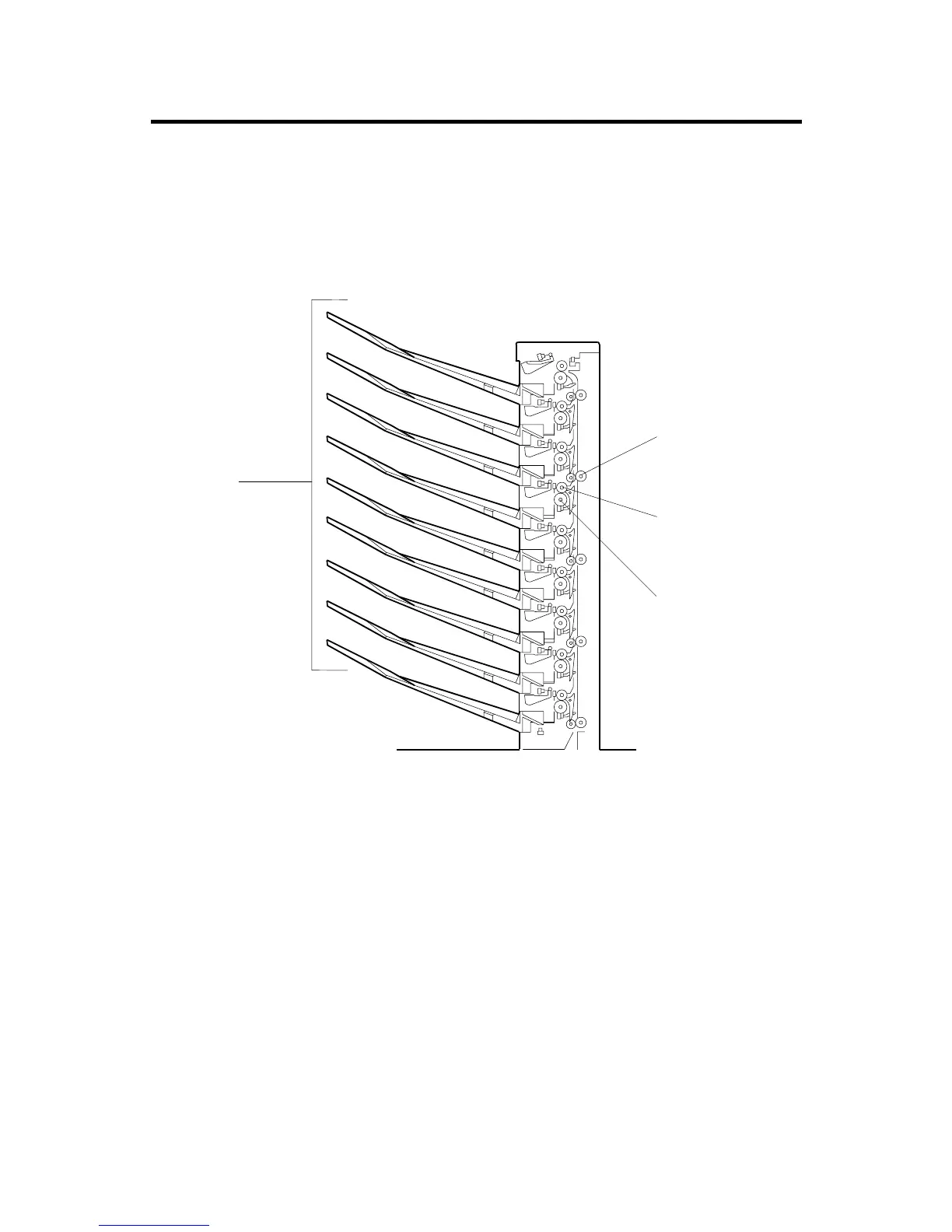

2.1.1 MAIN COMPONENT LAYOUT
1. Bins (x 9)
2. Vertical Transport Rollers (x 5)
3. Turn Gates (x 8)
4. Exit Rollers (x 9)
The trays are 1 to 9 (bottom to top). The numbers are clearly marked on the side of
the unit. The top tray does not require a turn gate. When the top tray is selected for
output, all turn gates remain closed, leaving only the top bin open.
B471D003.WMF
1
2
4
3
