Ricoh D014 - Double-Feed Detection Led

PTR Unit
D014/D015/D078/D079 3-74 SM
3.5.10 DOUBLE-FEED DETECTION LED
1. Remove:
 Drawer unit
 Drawer unit connector bracket
 Registration motor
 Sensor support plate
 Registration motor inner cover ( x4)

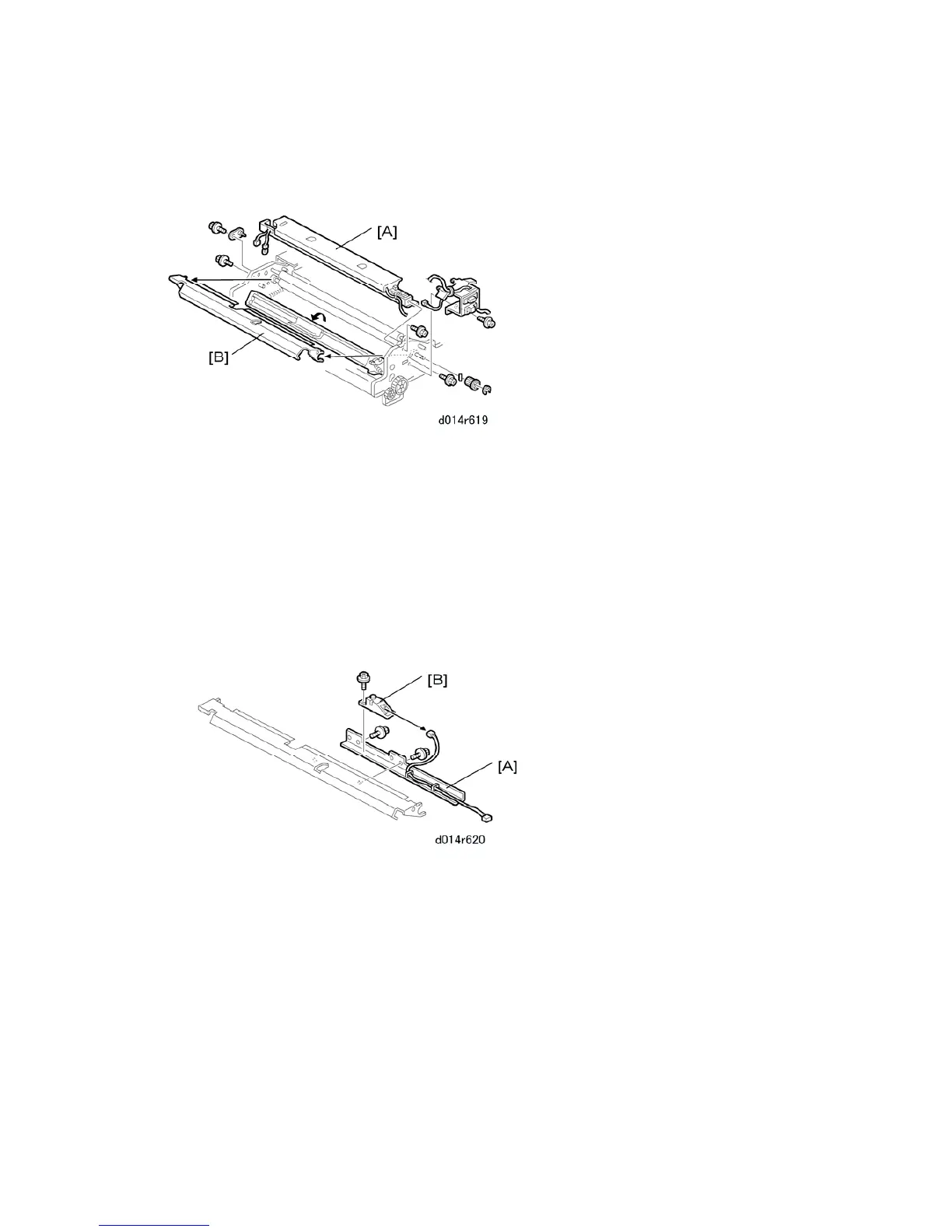

[A] Upper stay ( x2)
[B] Lower stay ( x2,  x1)
2. Remove:
[A] Sensor bracket ( x2)
[B] Double-feed detection LED ( x1,  x1)
Reinstallation
 Do the forced MUSIC adjustment with SP 2111 001.
