REPLACEMENT AND ADJUSTMENT
SM 15 B830
Finisher
B830

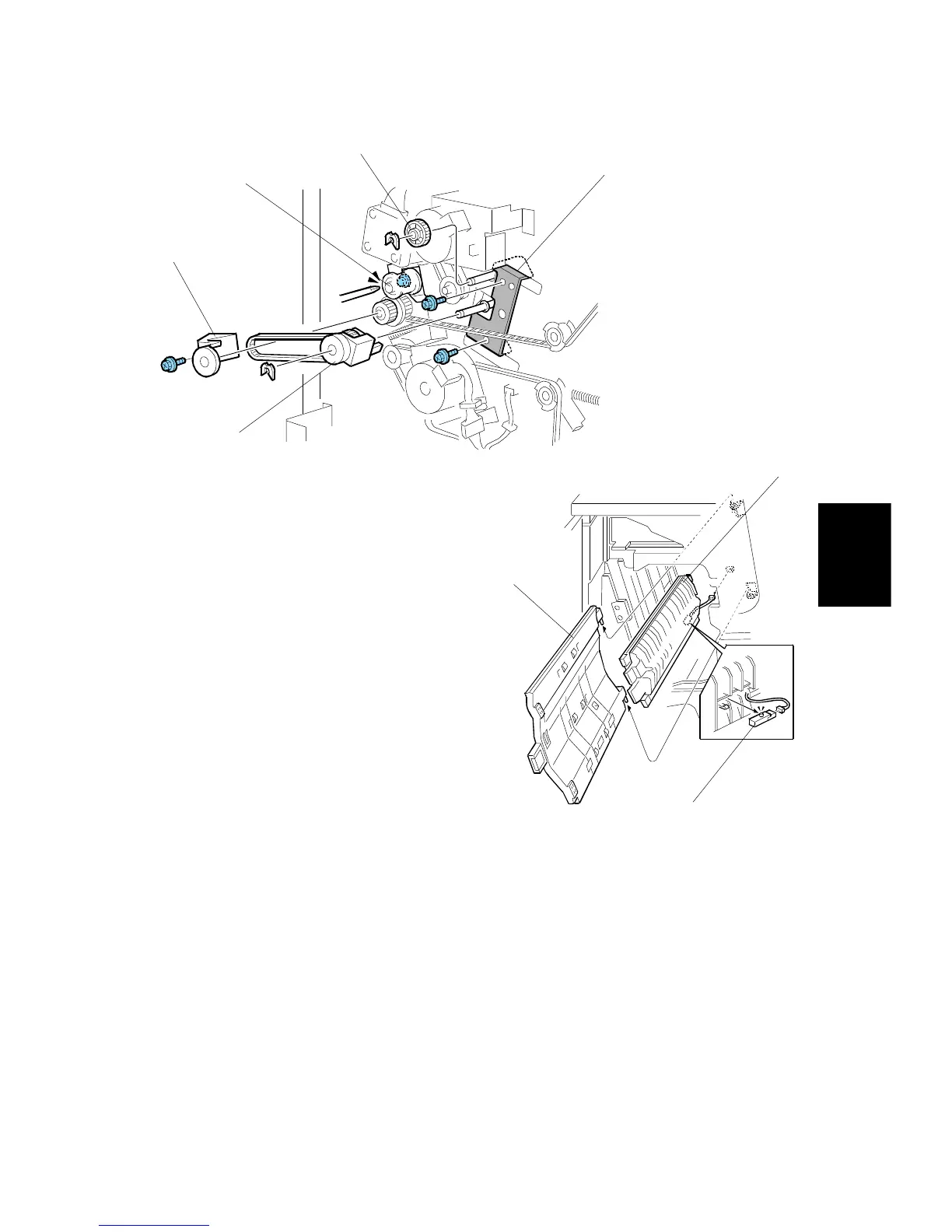

Loosen the screw [A] (

x1)
Remove:
[B] Gear cover (

x1)
[C] Gear (

x1, Timing belt x1)
[D] Gear (

x1)
[E] Plate (

x2)
[F] Left vertical transport guide
[G] Middle vertical transport guide
[H] Pre-stack paper sensor (

x1)
