Cover Interposer Tray (B704)
SM 1-123 D014/D015/D078/D079
Installation

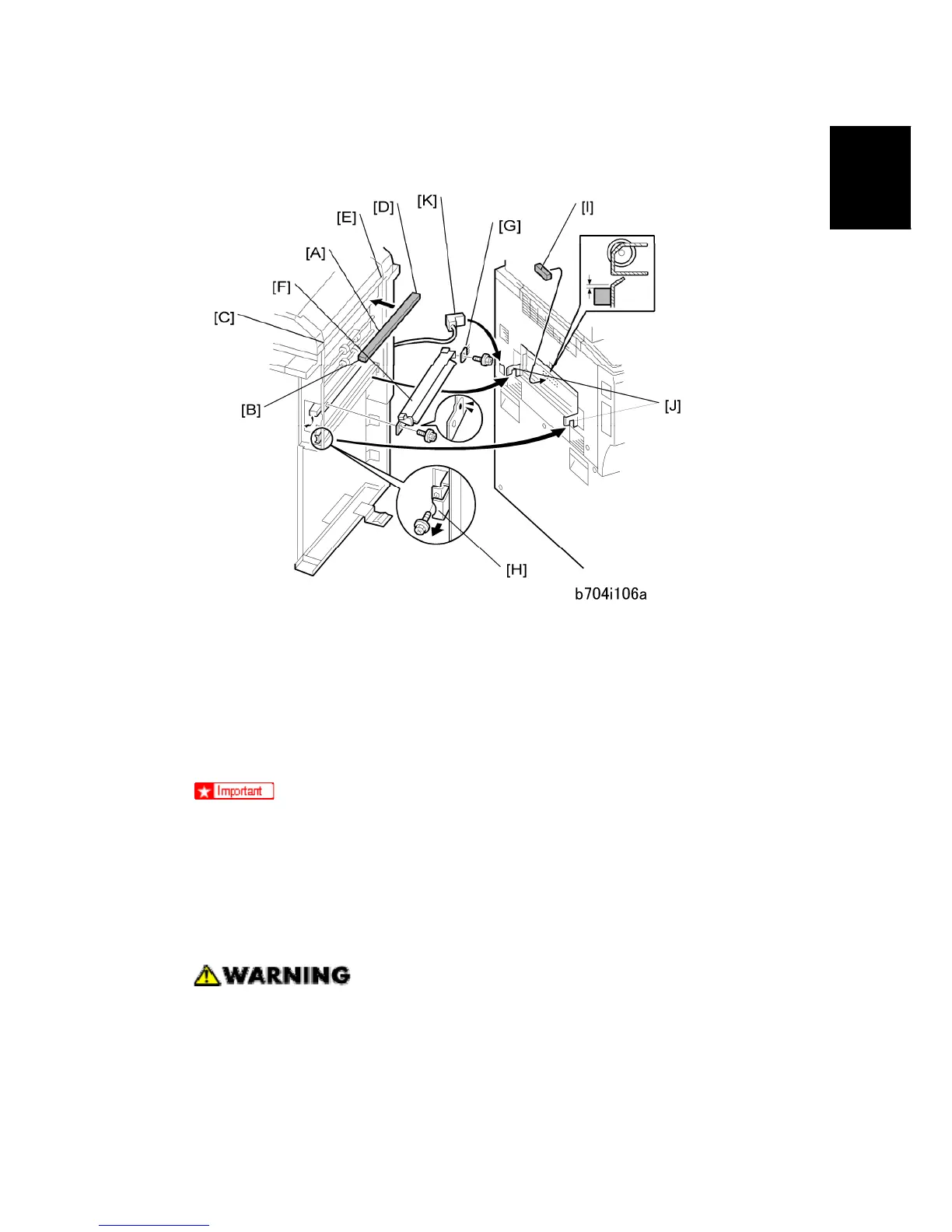

4. Attach the sponge strip [A] that is supplied with the finisher.
Align the sponge end [B] with the edge [C].
Align the sponge end [D] with the edge [E].
5. Attach the guide plate (removed from the finisher) to the cover interposer.
Attach the front end [F] of the plate ( x 1).
Attach the rear end of the plate with the anti-static brush [G] ( x 1).
Use the two small tapping screws that are supplied, and not the machine
screws removed from the finisher guide plate.
6. Release the lock lever [H] ( x 1).
7. Attach the pad [I]. This pad is provided with the finisher.
8. Slowly push the finisher against the side of the machine until the brackets [J] go into
the slots.
Move the finisher carefully to avoid bending the entrance guide plates.
9. Attach the lock lever [H] ( x 1).
10. Connect the connector [K] to the copier.
