PCU
SM 3-41 D014/D015/D078/D079
Replacement
Adjustment
3. Remove:
[A] Charger roller unit holder (x2)
[B] Bracket with sponge seal
[C] Lubricant bar unit cover (x2)

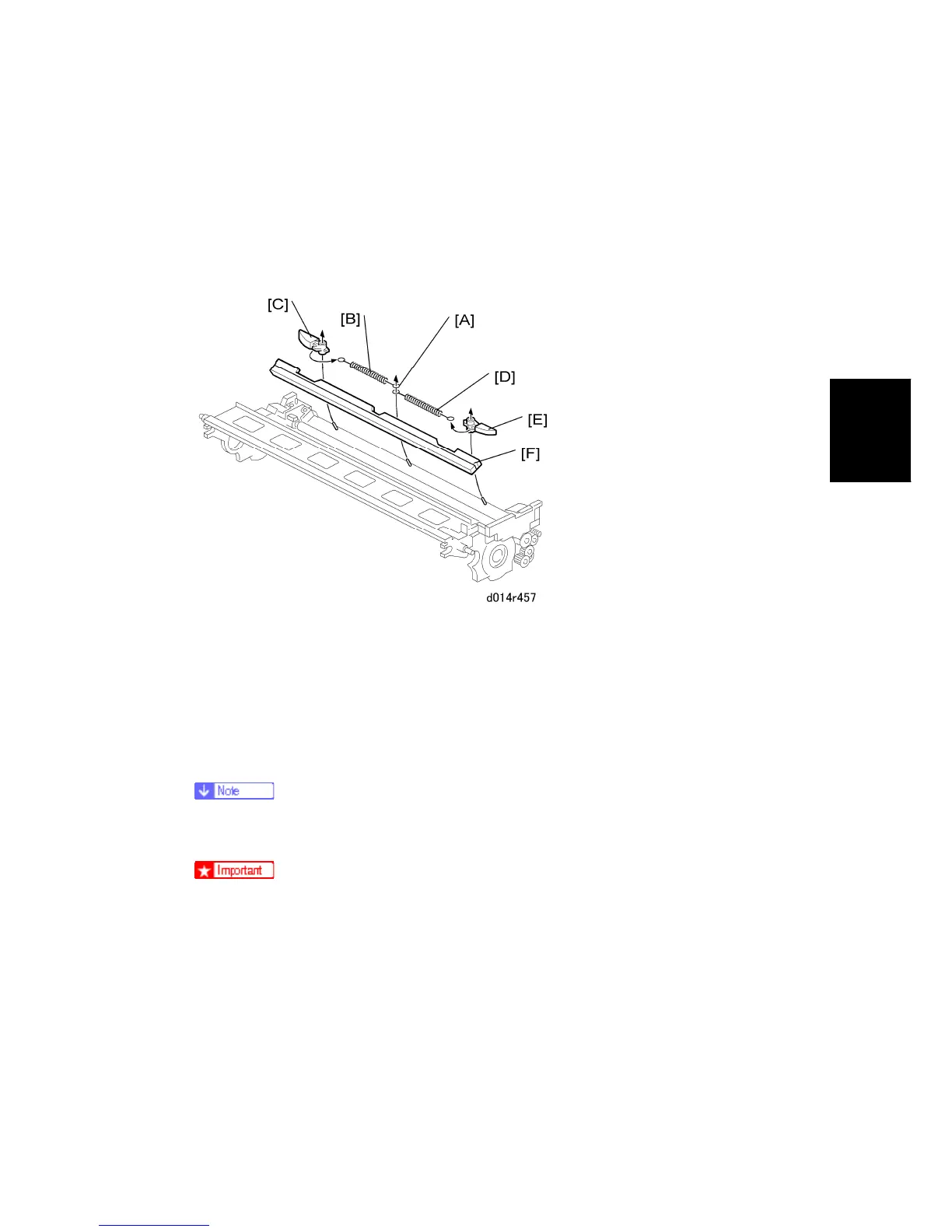

To remove the old lubricant bar:
1. At the center [A], disconnect springs from the post.
2. Disconnect the rear spring [B] from the rear bar support, then remove the support [C]
from its post.
3. Disconnect the front spring [D] from the front bar supports, then remove the support [E]
from its post.
4. Remove the lubricant bar [F] and replace it with a new one.
The lubricant bars of the K PCU and YMC PCUs are identical. The same type
of lubricant bar can be installed in either type of PCU.
The springs of the lubricant bar units are not interchangeable. The springs of
the CMY lubricant bar unit are brown and stronger than the springs of the K
lubricant bar unit (the K lubricant bar springs are black).
