Motors
SM 3-133 D014/D015/D078/D079
Replacement
Adjustment
 Do not release the harnesses that are permanently locked. Release only
enough harnesses so you can pull the cross-brace [D] away from the machine
so that you can see the ITB motor [E].

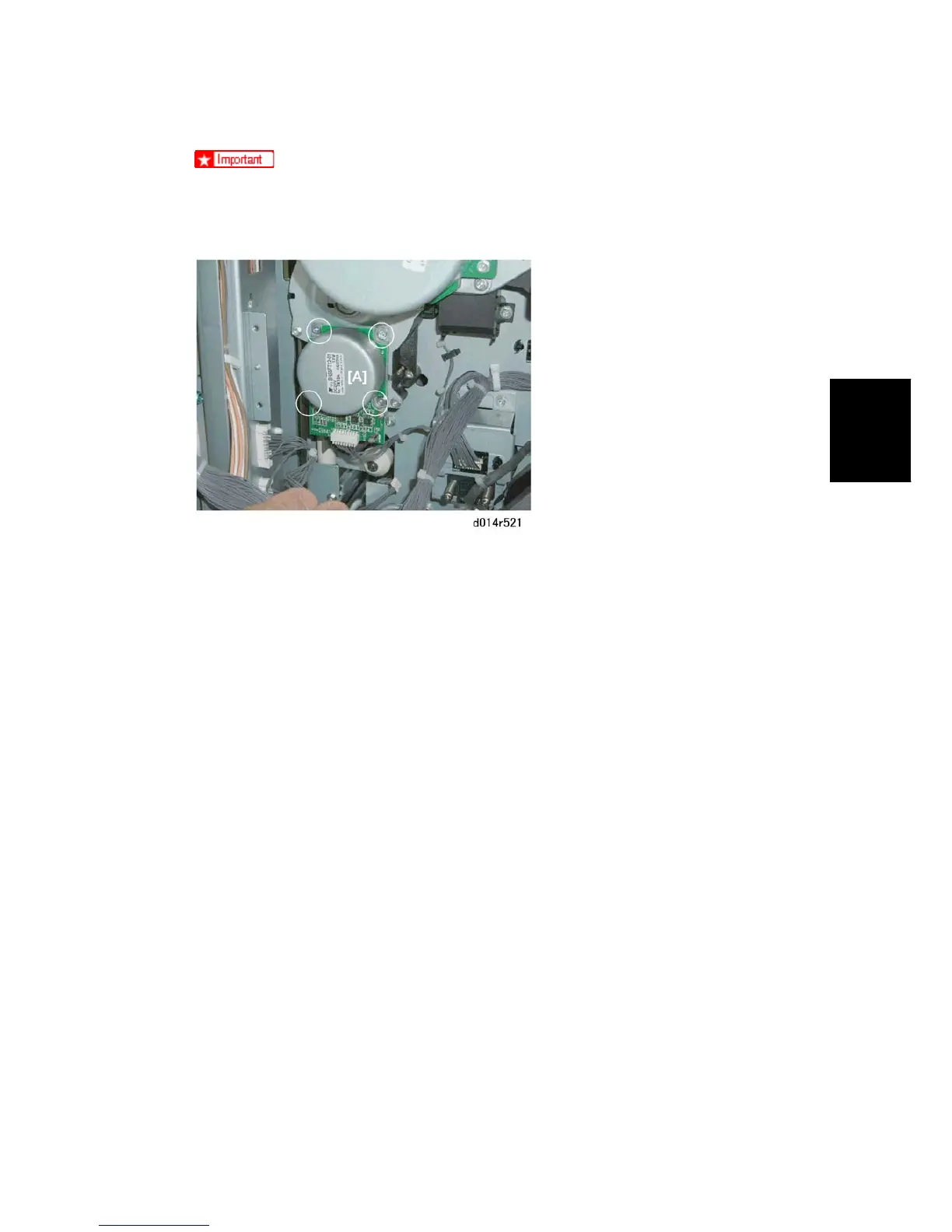

4. Remove the ITB drive motor [A] ( x4,  x1).
