Laser Unit
SM 3-29 D014/D015/D078/D079
Replacement
Adjustment
The scanner unit is very heavy. Never remove the support rod during
servicing.

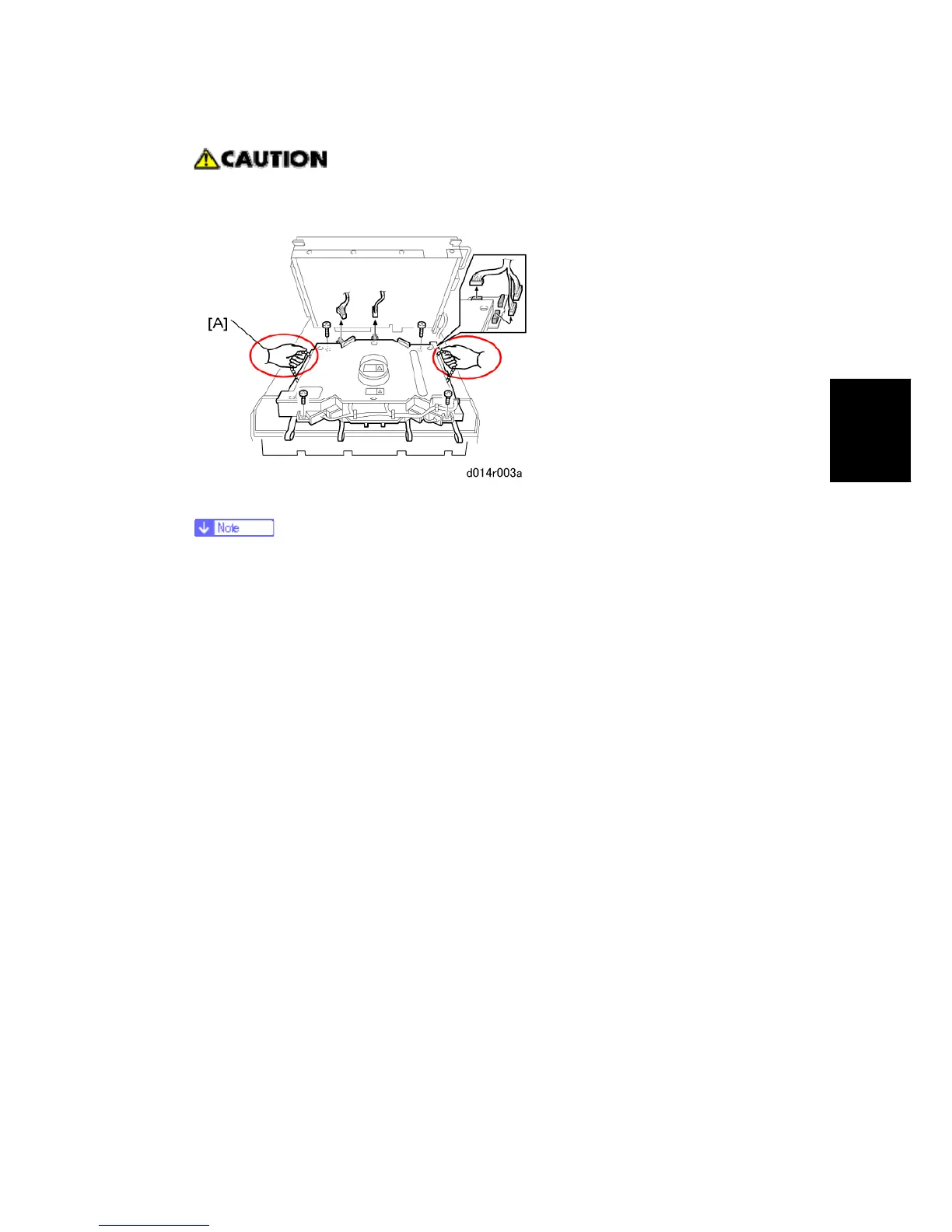

3. Remove the laser unit [A] ( x4, x6)
The laser unit includes four LD sub units. However, the LD sub units cannot be
replaced separately because factory adjustment is required.
Reinstallation
Be sure to reconnect the ground wire ([C] in step 2).
