Installation
SM 3 D356
D356
Fax Option
Type C7500
2. Remove:
[B] Upper cover (x2,  Stepped x2)
[C] Lower Cover ((x2)

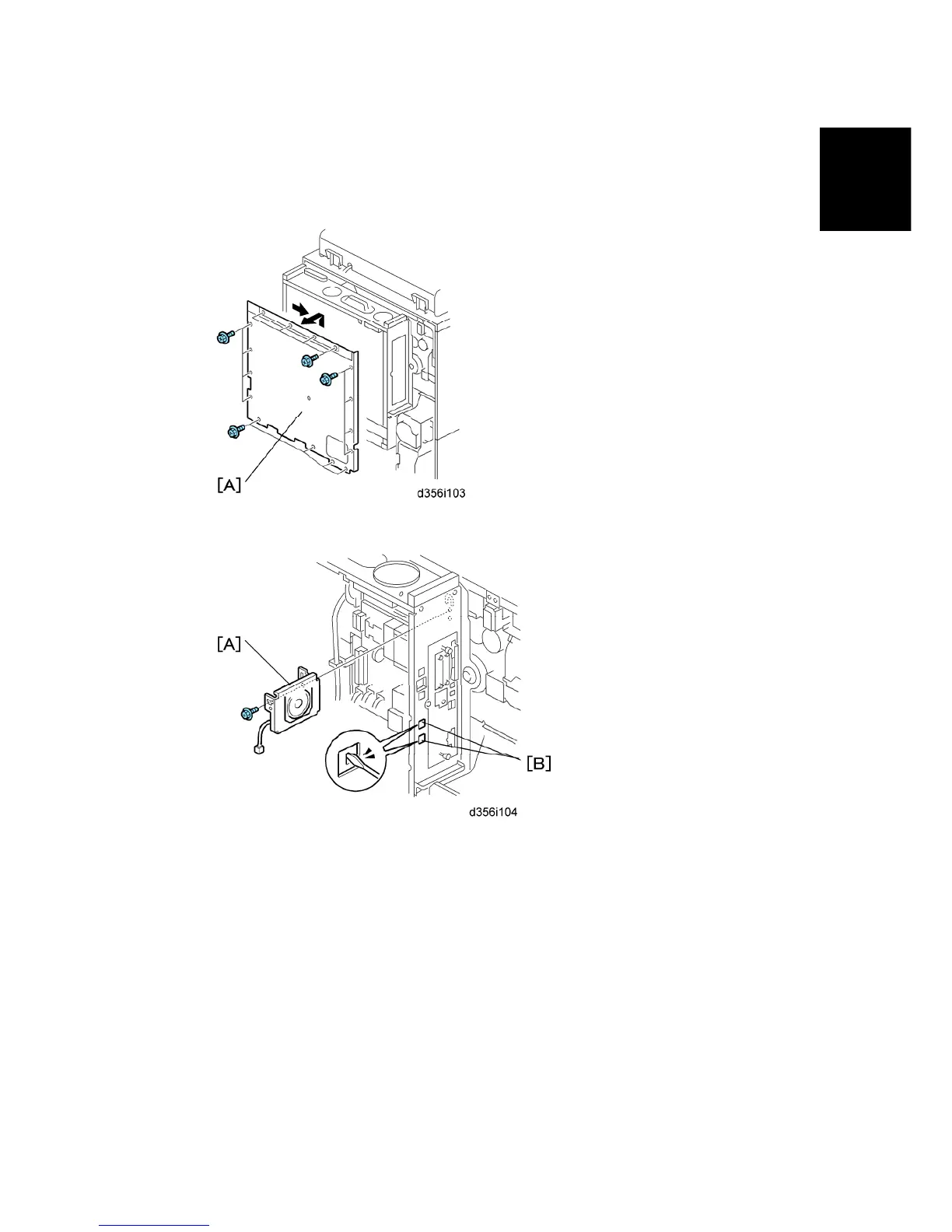

3. Remove the controller box cover [A] (x16).
4. Attach the speaker [A] (x11)
5. Use the tip of a small screwdriver to break out plastic covers [B] of the "TEL" and "LINE
1" jacks.
