LCT (B473), LCT Adapter (B699)
D014/D015/D078/D079 1-54 SM
The release button [D] is used to unlock the LCT.
9. Connect the plug [E] of the LCT power connector to the side of the machine.

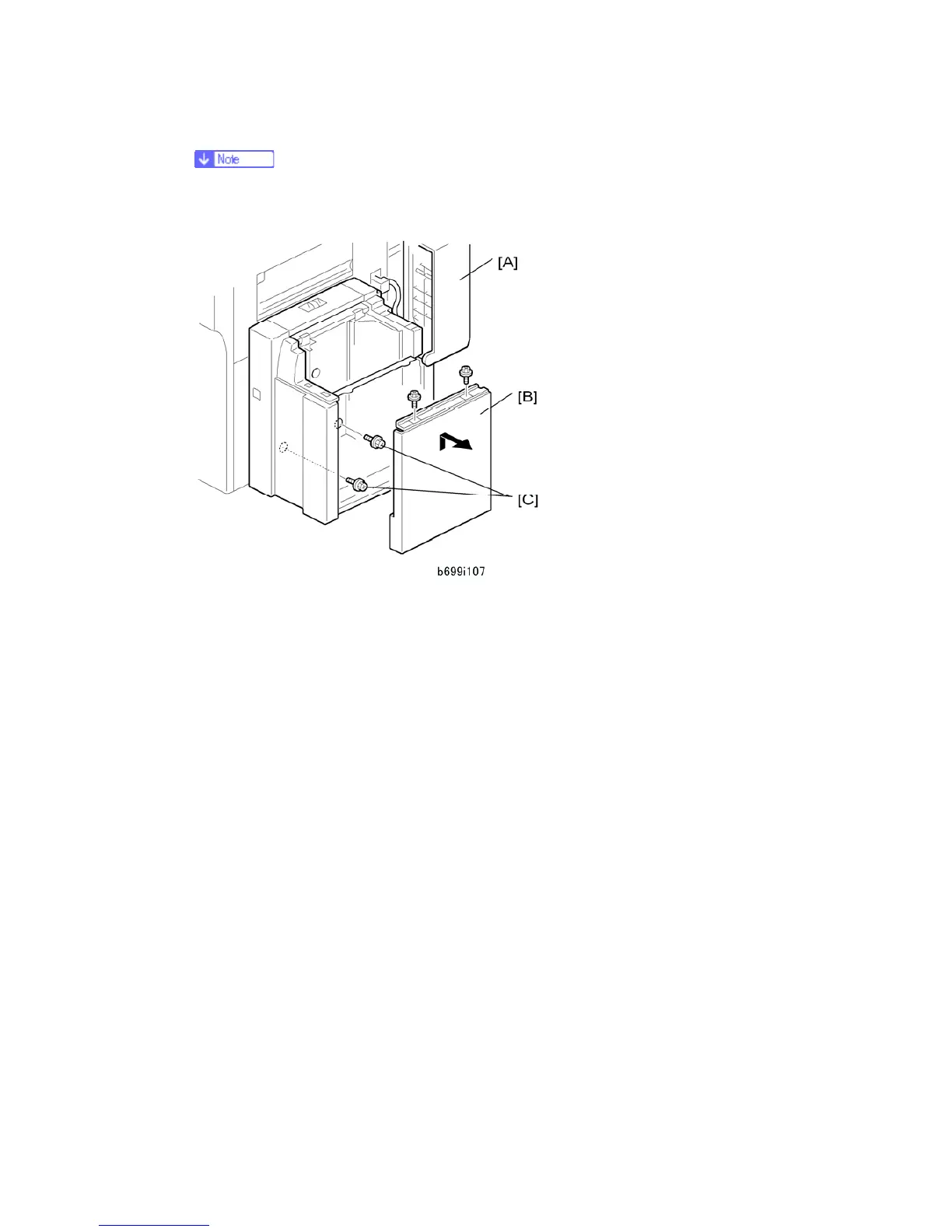

10. Open the upper cover [A].
11. Remove the cover [B] ( x 2).
12. Attach screws [C] to the brackets on the side of the machine.
13. Attach the cover [B] with the screw that you removed in Step 11.
