Bit Switches
D356 68 SM
4.3.1 SYSTEM SWITCHES
System Switch 00 (SP No. 1-101-001)
No Function Comments
0
Dedicated transmission
parameter programming
0: Disabled
1: Enabled
Set this bit to 1 before changing any dedicated
transmission parameters.
Reset this bit to 0 after programming dedicated
transmission parameters.
1 Not used Do not change
Technical data printout on the
Journal
0: Disabled
1: Enabled
1: Instead of the personal name, the following
data are listed on the Journal for each G3
communication.

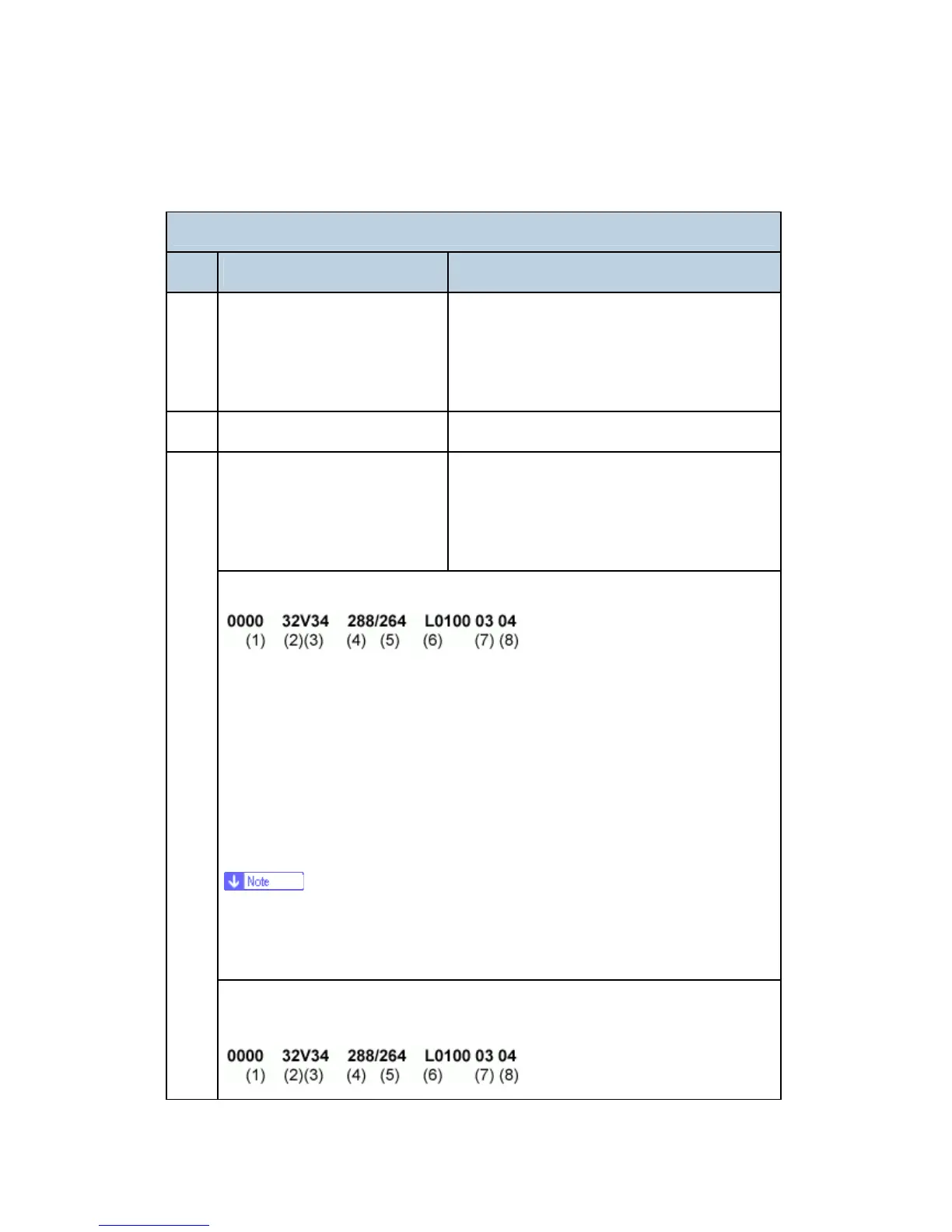

Example:
(1): EQM value (Line quality data). A larger number means more errors.
(2): Symbol rate (V.34 only)
(3): Final modem type used
(4): Starting data rate (for example, 288 means 28.8 kbps)
(5): Final data rate
(6): Rx revel (see below for how to read the rx level)
(7): Total number of error lines that occurred during non-ECM reception.
(8): Total number of burst error lines that occurred during non-ECM reception.
EQM and rx level are fixed at "FFFF" in tx mode.
The seventh and eighth numbers are fixed at "00" for transmission
records and ECM reception records.
2
Rx level calculation
Example:
