LG Unit for A4/LT LCT (B474)
SM 1-61 D014/D015/D078/D079
Installation

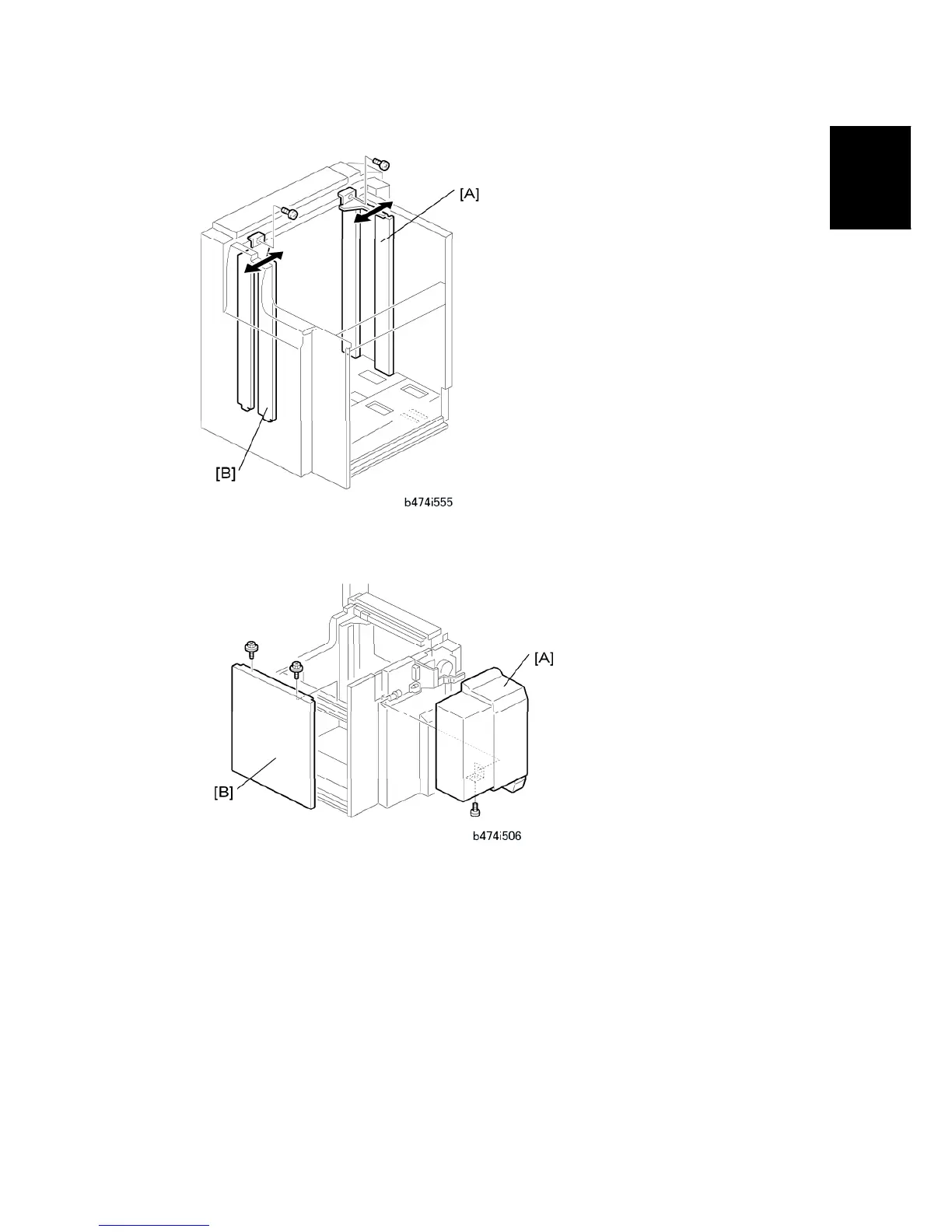

13. Move the front side fence [A] and rear side fence [B] to the B4 or 8.5" position and
attach it ( x 1).
14. Attach the cover [A] (8.5" x 14"/B4) ( x 1).
15. Attach the right cover [B] ( x 2).
16. Connect the LCT to the machine.
17. Turn the machine on.
18. Go into the SP mode and do SP5959-2.
19. Input "5" for B4 SEF or "6" for 8.5" x 14" SEF.
