LCIT RT4000 (D350)
D014/D015/D078/D079 1-70 SM

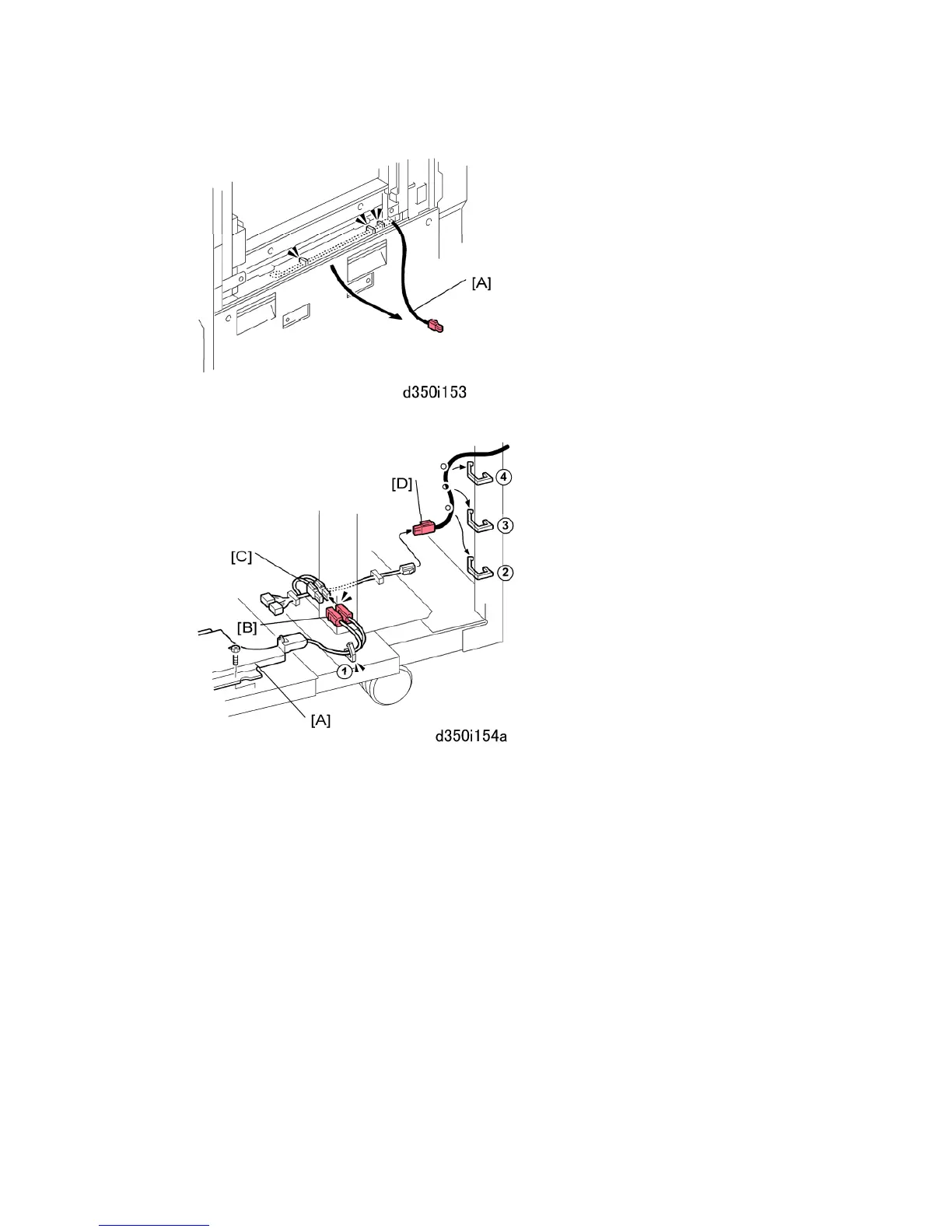

6. Pull the heater connection harness [A] away from the right side of the main machine.
7. Fasten the heater cover [A] to the base plate (x2).
8. Connect the heater harnesses [B] to the relay harness [C] (x2).
9. Connect the harness from the main machine [D] to the relay harness [C] (x1).
10. Clamp the harnesses as shown (=x4).
