Ricoh D014 - Page 169

2000/3000 Sheet Finishers (D373/D374)
SM 1-77 D014/D015/D078/D079
Installation
3. Open the front door.
4. Remove all tapes and packing materials inside the finisher.

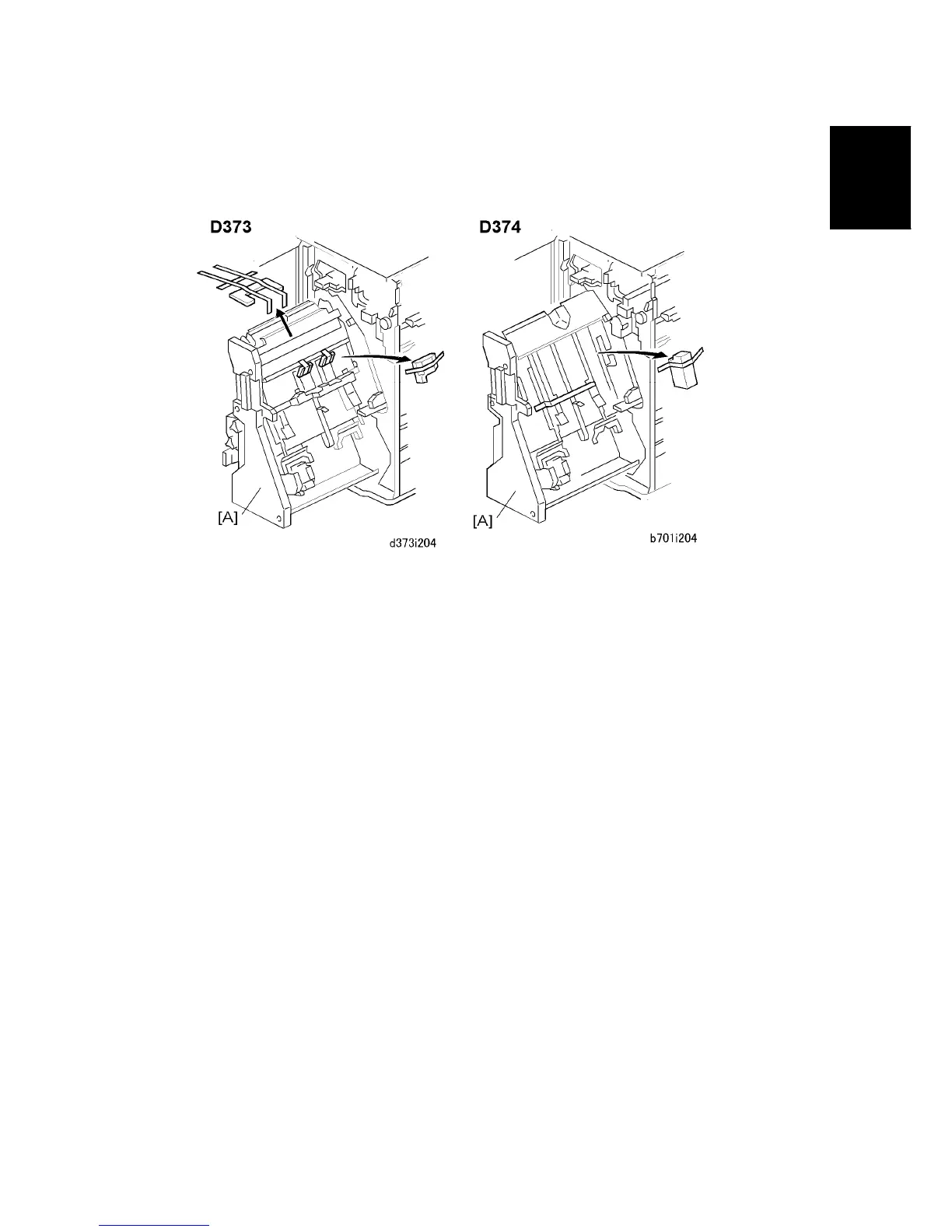

5. Pull the jogger unit [A] out of the finisher.
6. Remove the tapes and retainers.
