Mail Box (B762)
SM 1-95 D014/D015/D078/D079
Installation
2. If the Cover Interposer Tray B704 is installed on the D373/D374, remove it.
The cover interposer tray and mailbox cannot be installed on the finisher at
the same time.
3. Remove the top cover [A] of the
finisher ( x 1).
4. Remove the bracket [B] ( x 1).

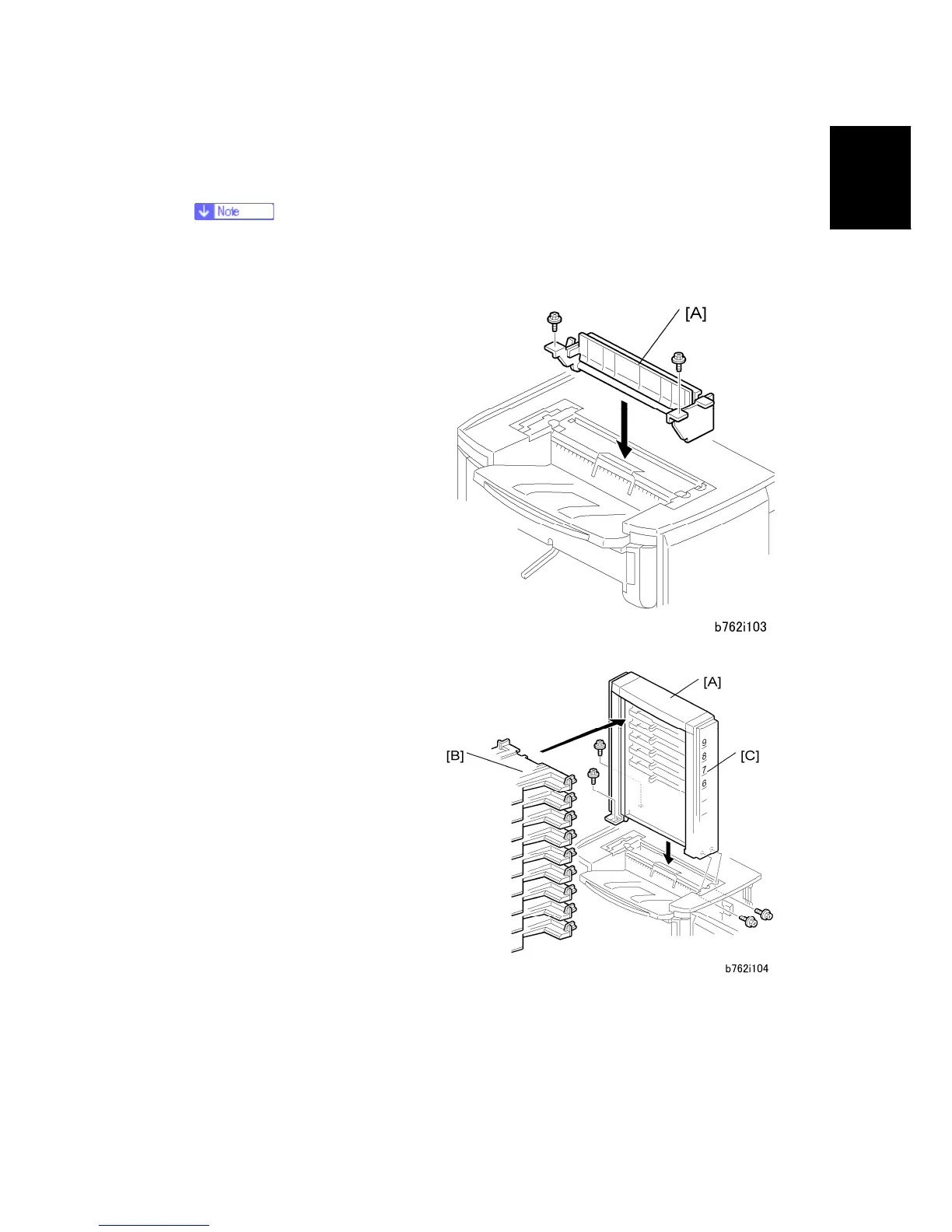

5. Attach the guide plate [A] to the
top of the finisher ( x 2, M3 x 8).
6. Attach the mailbox [A] to the top of the finisher ( x 4, M3 x 8).
7. Attach the 9 trays [B] to the mailbox.
8. Give the decals [C] to the customer. The customer will write on these and attach them
at the correct locations.
