SR 5000 (B830) Finisher Installation
D014/D015/D078/D079 1-104 SM

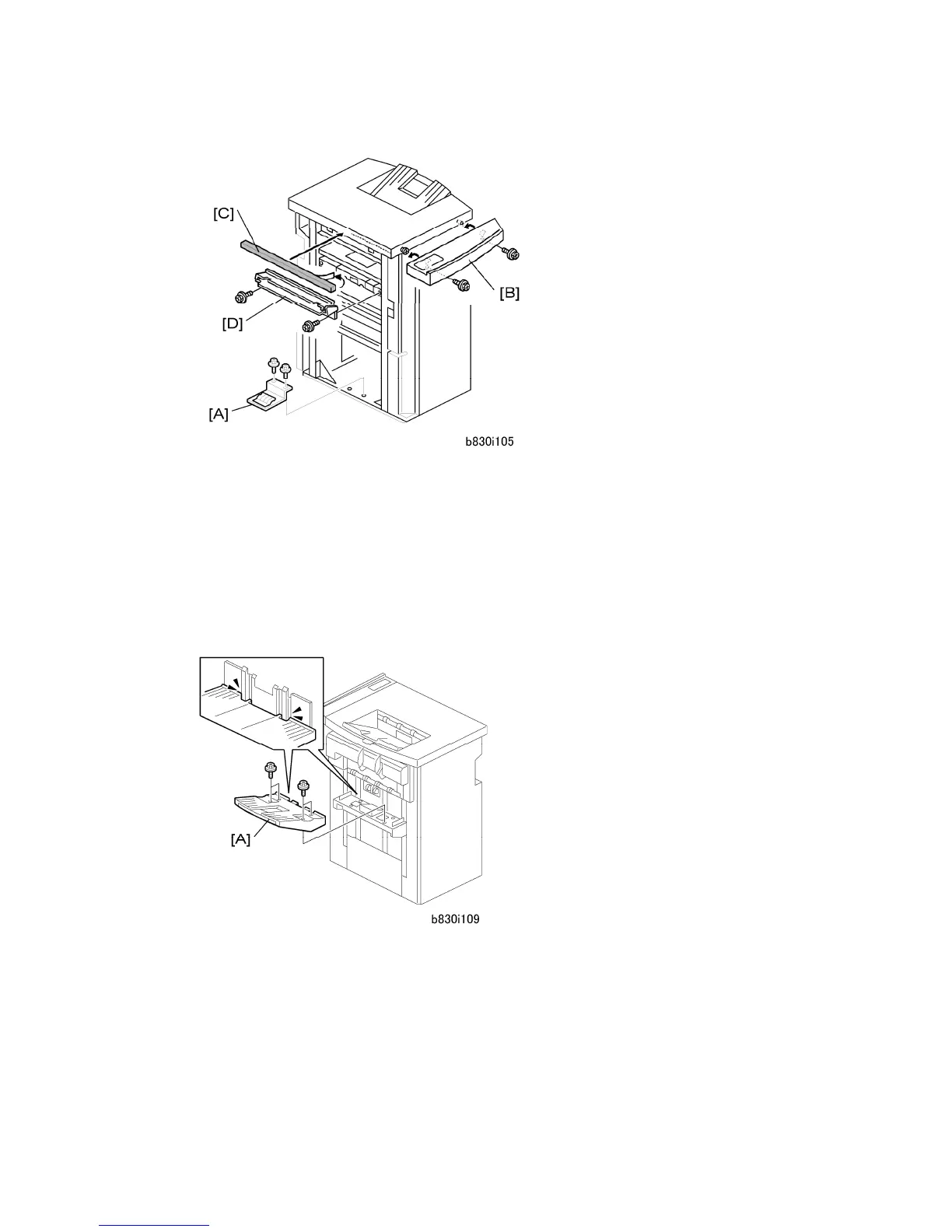

5. Install the ground plate [A] ( x 2) (M3 x 6).
Set the ground plate so that there is no gap between the plate and the bottom frame of
the finisher (as shown).
6. Install the table extension [B] ( x 2) (M4 x 8).
The edge of the table extension should be aligned with the edge of the finisher.
7. Attach the cushion [C] to the right side of the upper cover.
8. Install the entrance guide plate [D] ( x 2) (M3 x 6).
9. Insert the shift tray [A] into the grooves and fasten it ( x 4) (M3 x 6).
