Cover Interposer Tray CI5000 (B835)
D014/D015/D078/D079 1-126 SM
1) Use cover interposer firmware ver02.030:26 (P/N B8355510A) or newer.
- Cut-in S/N (B835-17): L6271100001 (November 2007 production)
2) 12" guide plates (guide plates and screws) for D014/D015/D078/D079 should be
included.
- Cut-in S/N (B835-17): L6270400094 (April 2007 production)
NOTE: 12" guide plates (guide plates and screws) for D014/D015 are
available as service parts:
B4682196 (Guide Plate Upper) 1pc
B8352191 (Guide Plate Lower) 1pc
04513006N (M3X6 screw) 2pcs

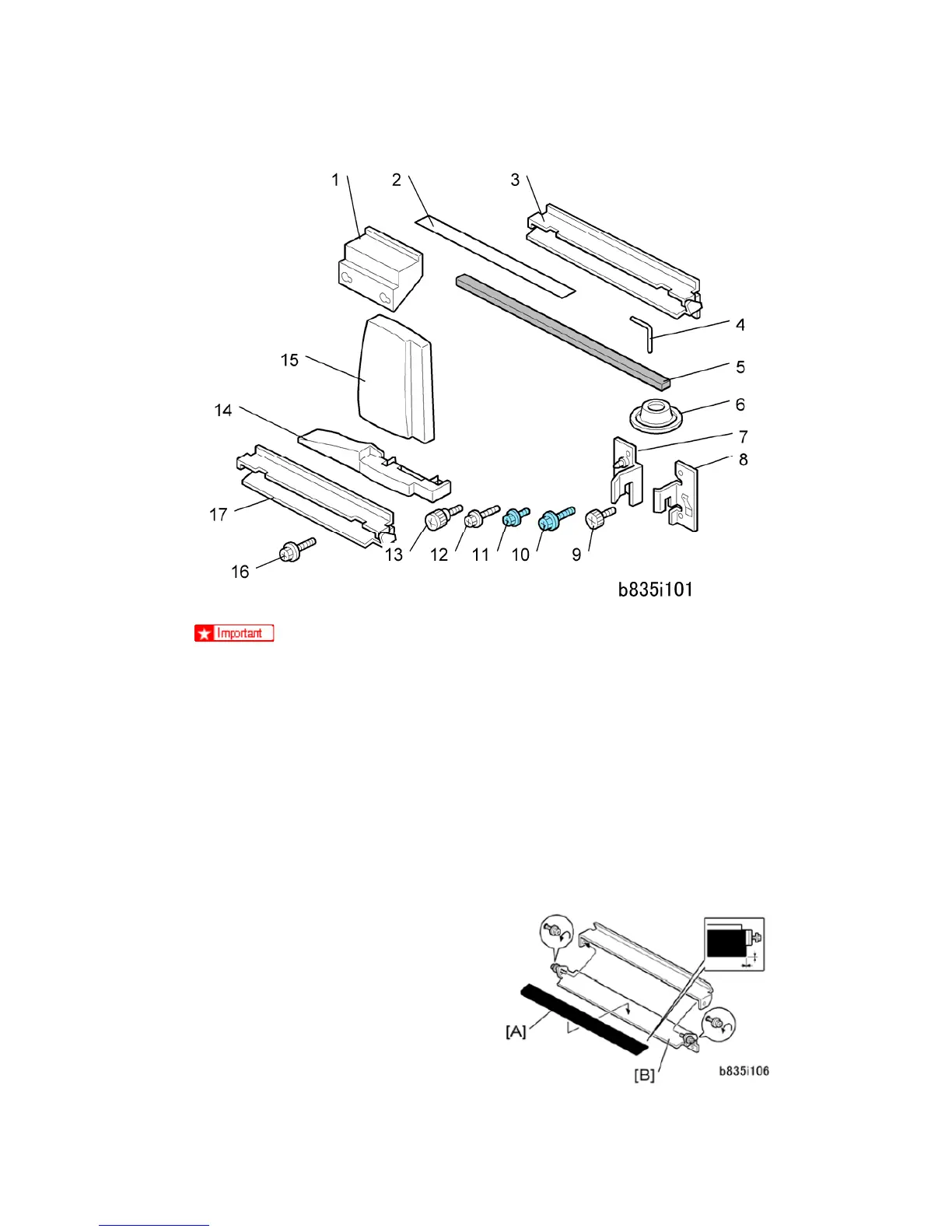

According to the configurations, attach the black Mylar [A] (included with the CI5000)
to the 13” guide plate [B]:
Configuration 1: Mainframe + CI5000
+ ZF4000 + SR4020 or SR5000
Use the 13" guide plate [B] included
with the Z-Folding Unit ZF4000.
Configuration 2: Mainframe + CI5000
+ SR5000
Use the 13" guide plate [B] included
with the Finisher SR5000.
Rev. 02/2008
⇒
To Next Page
