Cover Interposer Tray CI5000 (B835)
SM 1-133 D014/D015/D078/D079
Installation

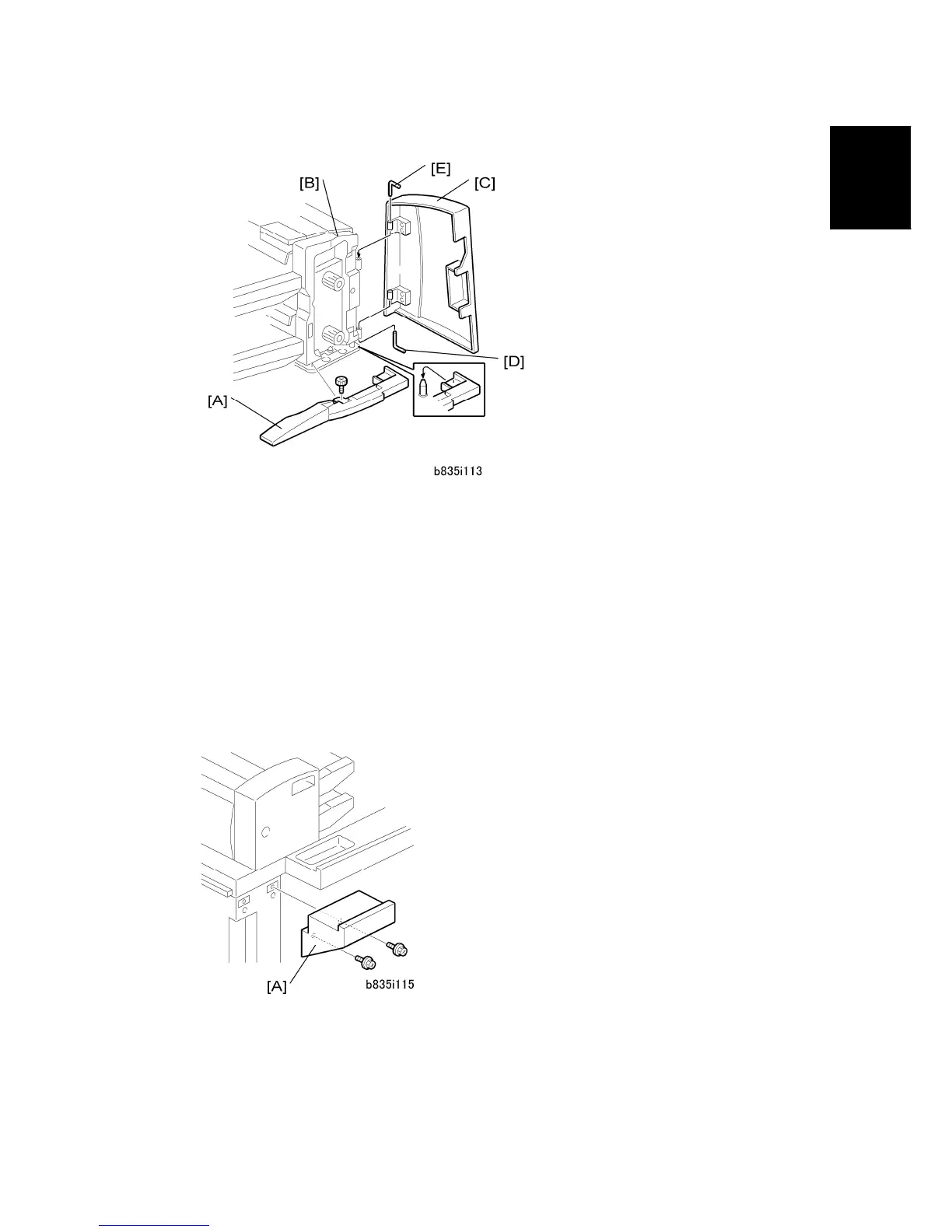

9. Attach the base cover [A] ( x1).
10. Confirm that the holes in the cover match the positions of the reference pins.
11. Re-attach the front inner cover [B] (removed at step 7 above).
12. Position the tray unit front door [C] so that its hinges match the posts on the frame of
the tray unit.
13. Hold the lower L-pin [D] as shown, insert it halfway, push it up, then rotate it into its
groove.
14. Hold the upper L-pin [E] as shown, insert it halfway, push it down, then rotate it into its
groove.
15. Attach the spacer [A] to the rear of the transport unit ( x2).
