Lubrication Points
D014/D015/D078/D079 2-26 SM
Lubricant Bar Replacement Procedure
1. Place a sheet of clean paper on the flat surface.
2. Pour a small amount of G104 Yellow Toner (D0159500) from its bottle onto the
paper.
3. Pour a small amount of Zinc Stearate (D0159501) from its bottle onto the paper.
4. Mix G104 Yellow Toner and Zinc Stearate together evenly.
NOTE:
Do not use the D014/D015/D078/D079 yellow toner instead of G104 yellow toner,
because it contains developer that could damage the drum and ITB.

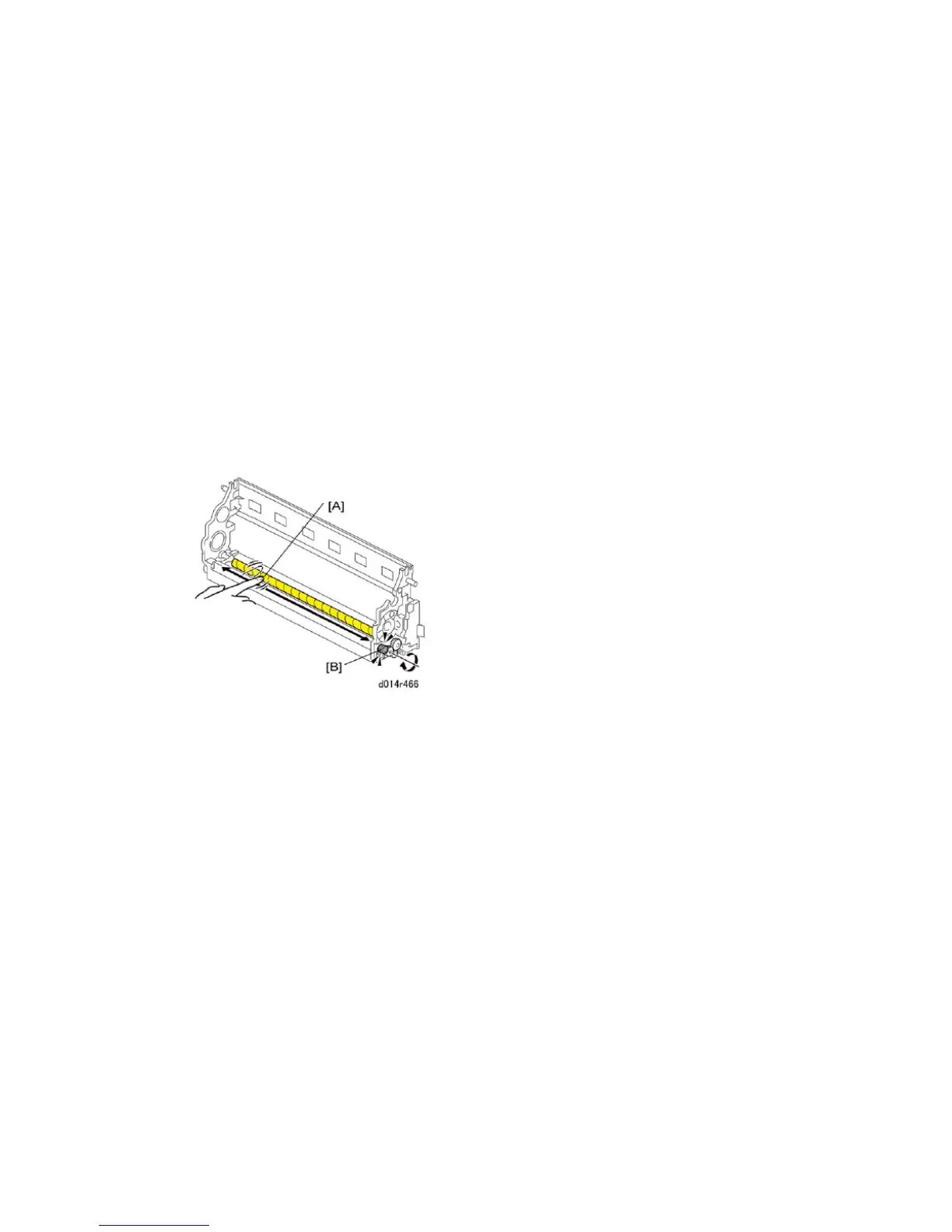

While rotating the gear [B] in the direction
of the arrow shown, use your finger to
apply the Mixed Powder of G104 Yellow
Toner and Zinc Stearate across the
surface of the PCU lubricant brush roller
[A].
I IMPORTANT:
1. Use a brush to apply the powder if one is available.
2. Only use this mixed powder for the PCU Lubricant Brush Roller of the
D014/D015/D078/D079 copier. Never apply this powder to another part or
another model.
