Common Procedures
D014/D015/D078/D079 3-14 SM
To prevent damage to the drum potential sensor and its relay board, always
make sure that the machine is turned off and that the power cord is
disconnected from the power source before you remove a PCU.
2. While pressing down the release tab [A] above the PCU, pull the PCU [B] out of the
machine.

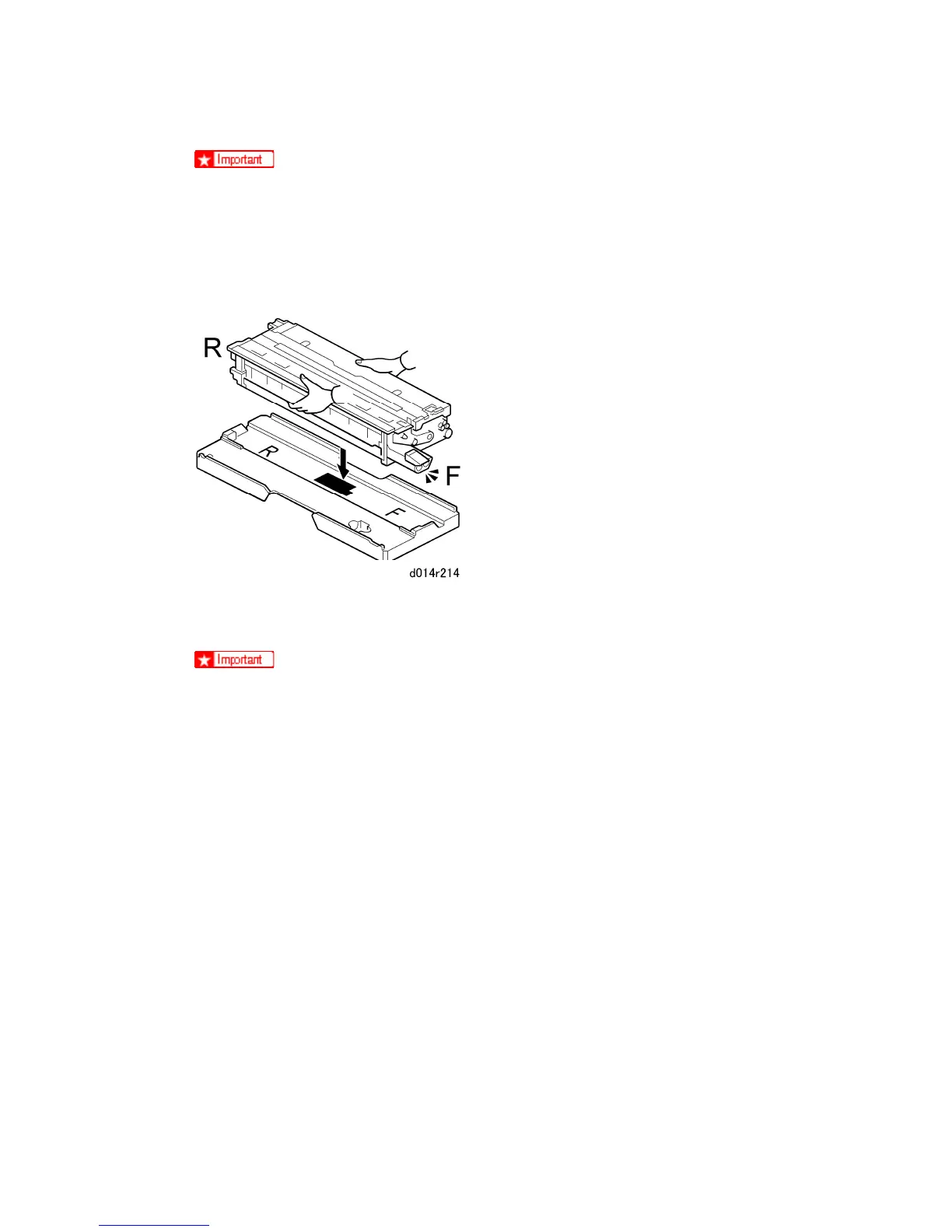

3. With both hands on either side of the PCU [A], remove it from the machine and set it on
the PCU stand [B].
This PCU stand was specially designed for the D014/D015/D078/D079. Do
not use the PCU stand that was made for the B132 series copiers.
The OPC drum is exposed on the bottom of the PCU, so never place your
hand under the PCU.
Never place the PCU on any surface other than the PCU stand.
