PCU
D014/D015/D078/D079 3-52 SM

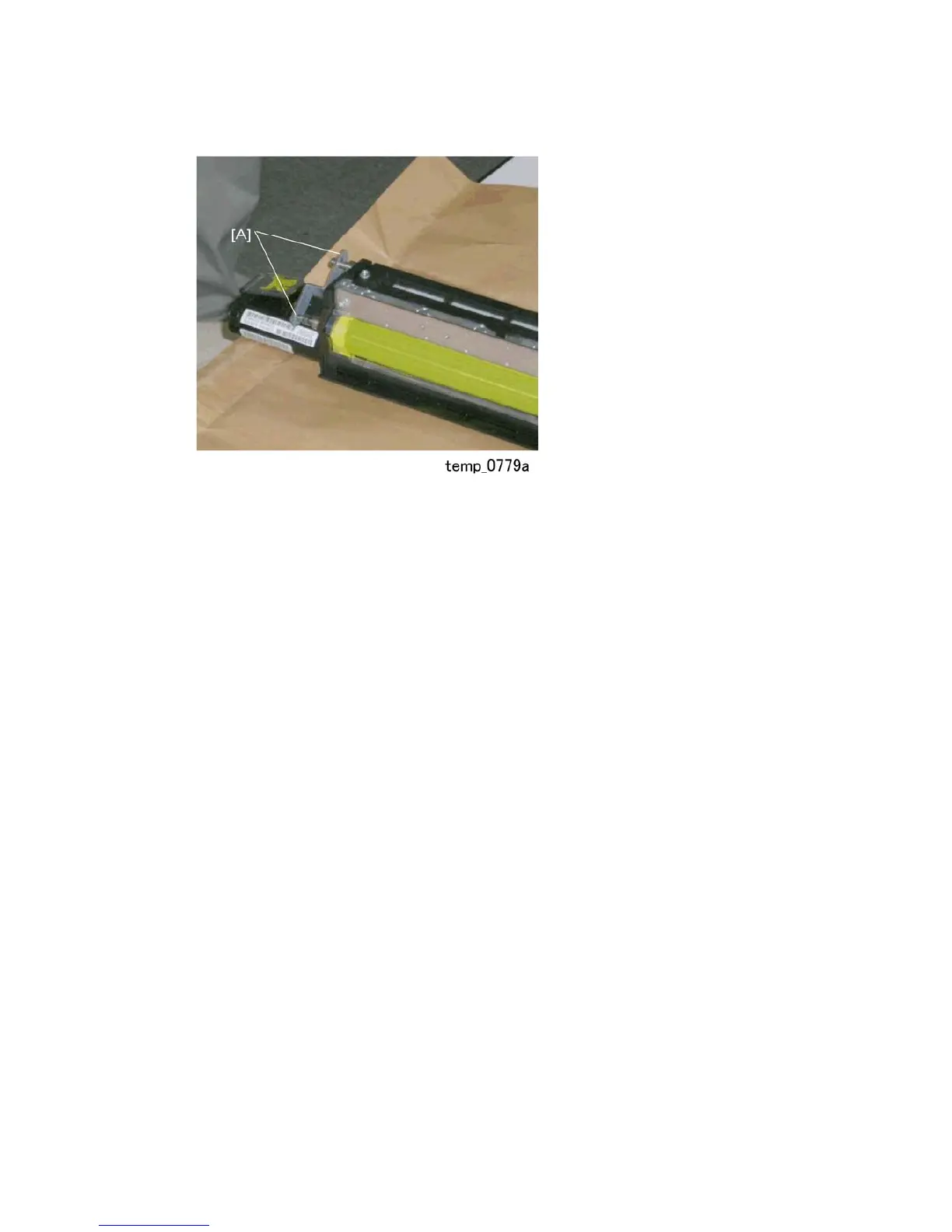

 Attach the metal jig [A] (provided with the PCU stand) to the ends of the shafts shown
above. This aligns the shafts correctly for reinstallation of the PCU.
 Reinstall the PCU and faceplate.
 Do not reinstall the toner hopper yet.
