Fusing Unit
SM 3-103 D014/D015/D078/D079
Replacement
Adjustment

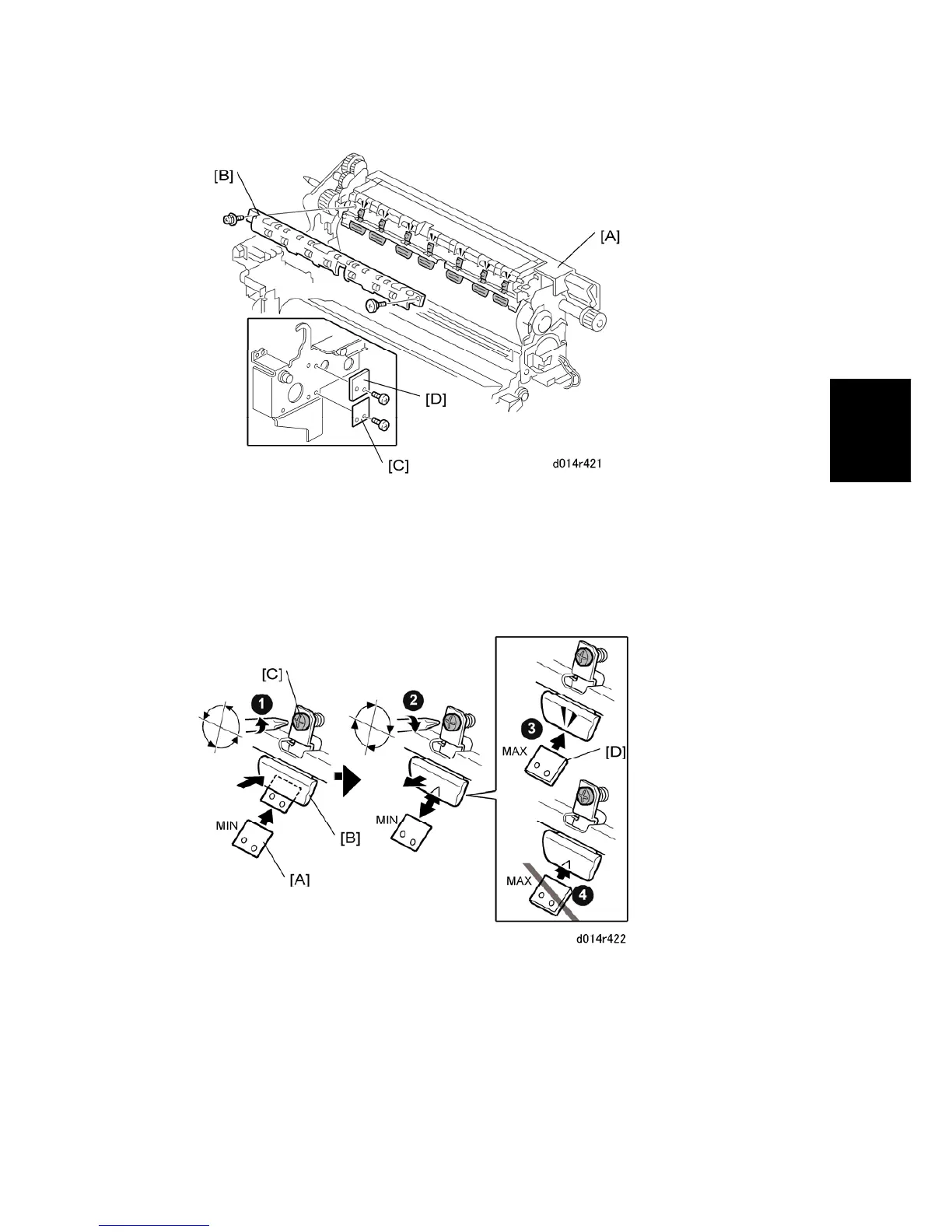

2. Separate the two halves of the fusing unit [A].
3. Remove:
[B] Fusing belt separation pawl guide plate ( x2)
[C] MIN thickness plate ( x1)
[D] MAX thickness plate ( x1)
4. Insert MIN thickness plate [A] between the separation pawl [B] and fusing belt.
5. Turn screw [C] in 90 degree steps to adjust the gap to the thickness of the MIN
thickness plate inserted between the pawl and belt.
Turning the screw 90 degrees counter-clockwise { reduces the gap.
Turning the screw 90 degrees clockwise increases the gap.
