Ricoh D014 - Page 954

Process Control
D014/D015/D078/D079 6-50 SM
6.8.6 MUSIC (MIRROR UNIT FOR SKEW AND INTERVAL
CORRECTION)

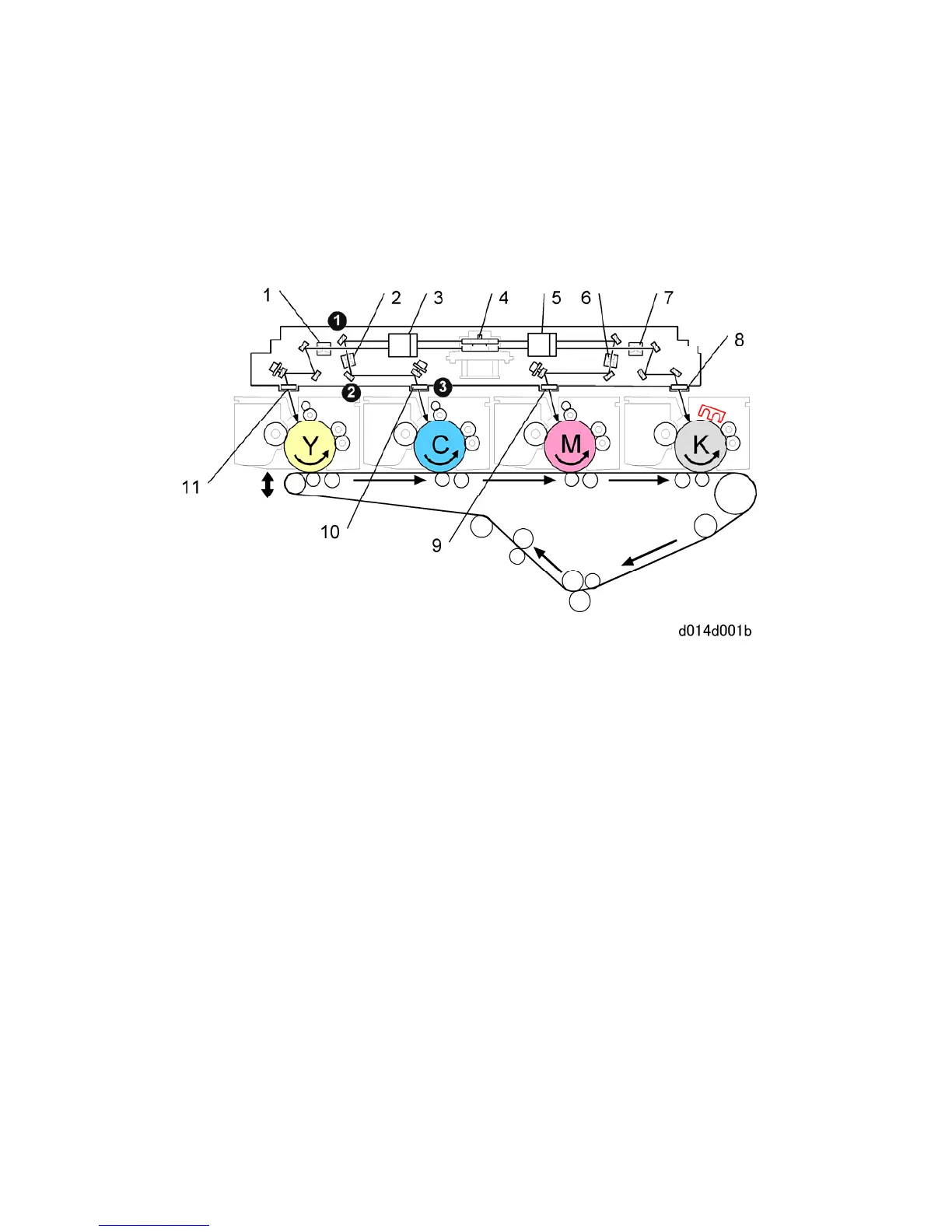

The Optical Path
1. WTL Lens (Y) 7. WTL Lens (K)
2. WTL Lens (C) 8. Dust-shield Glass
3. Dual-layer f-theta Lens (C, Y) 9. Dust-shield Glass
4. Polygon Mirror Motor 10. Dust-shield Glass
5. Dual-layer f-theta Lens (M, K) 11. Dust-shield Glass
6. WTL Lens (M)
