Image Transfer
SM 6-77 D014/D015/D078/D079
Detailed
Descriptions
6.9.8 PAPER TRANSFER

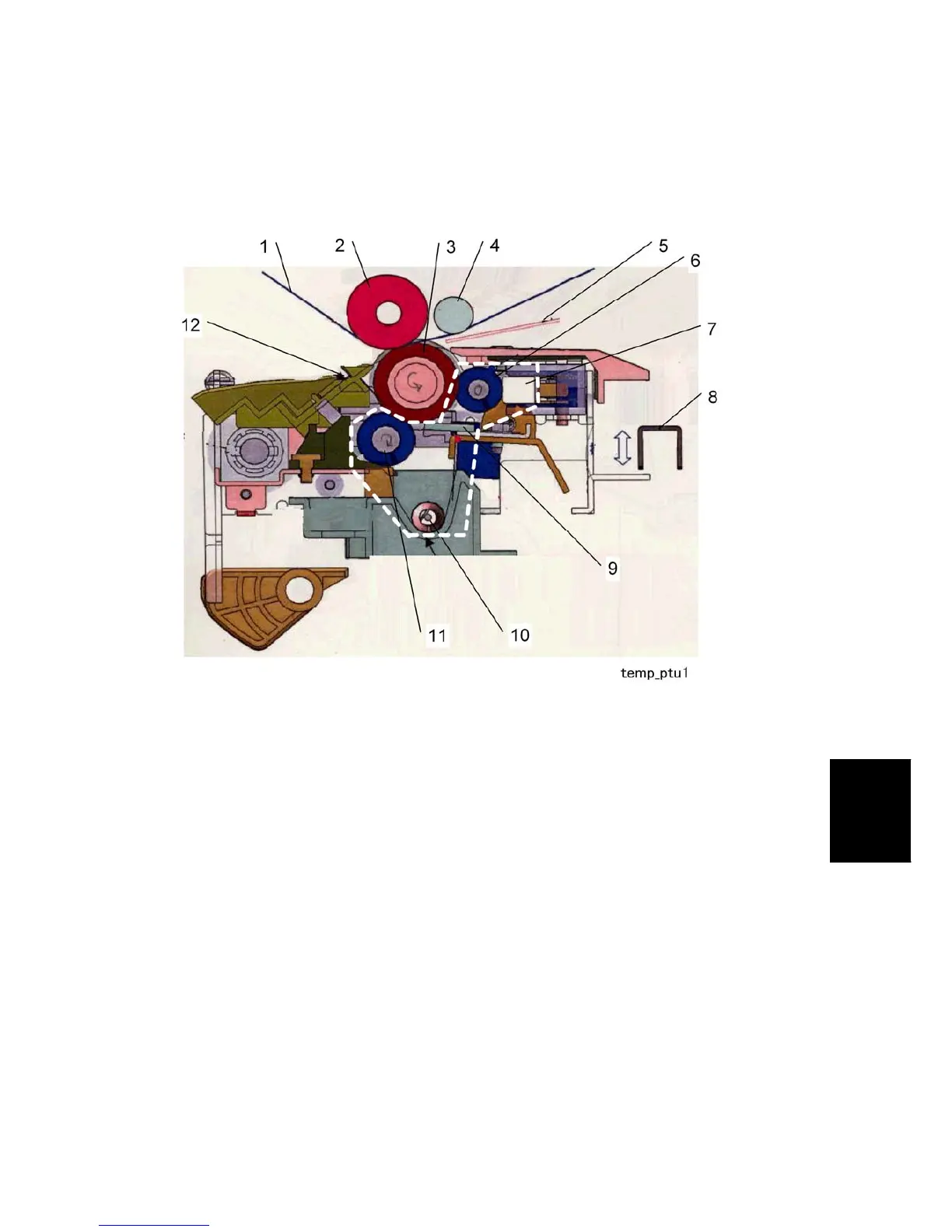

Paper Transfer Unit Overview
1. ITB (Image Transfer Belt) 7. Lubrication Bar
2. ITB Bias Roller 8. Lift Bracket
3. PTR (Paper Transfer Roller) 9. Cleaning Blade
4. Tension Roller 10. Toner Collection Coil
5. Entrance Guide 11. Paper Dust Brush
6. Lubrication Brush Roller 12. Paper Discharge Plate
Note: Items 6, 7, 9, 10, 11 comprise the PTR cleaning unit.
