Image Transfer
D014/D015/D078/D079 6-82 SM

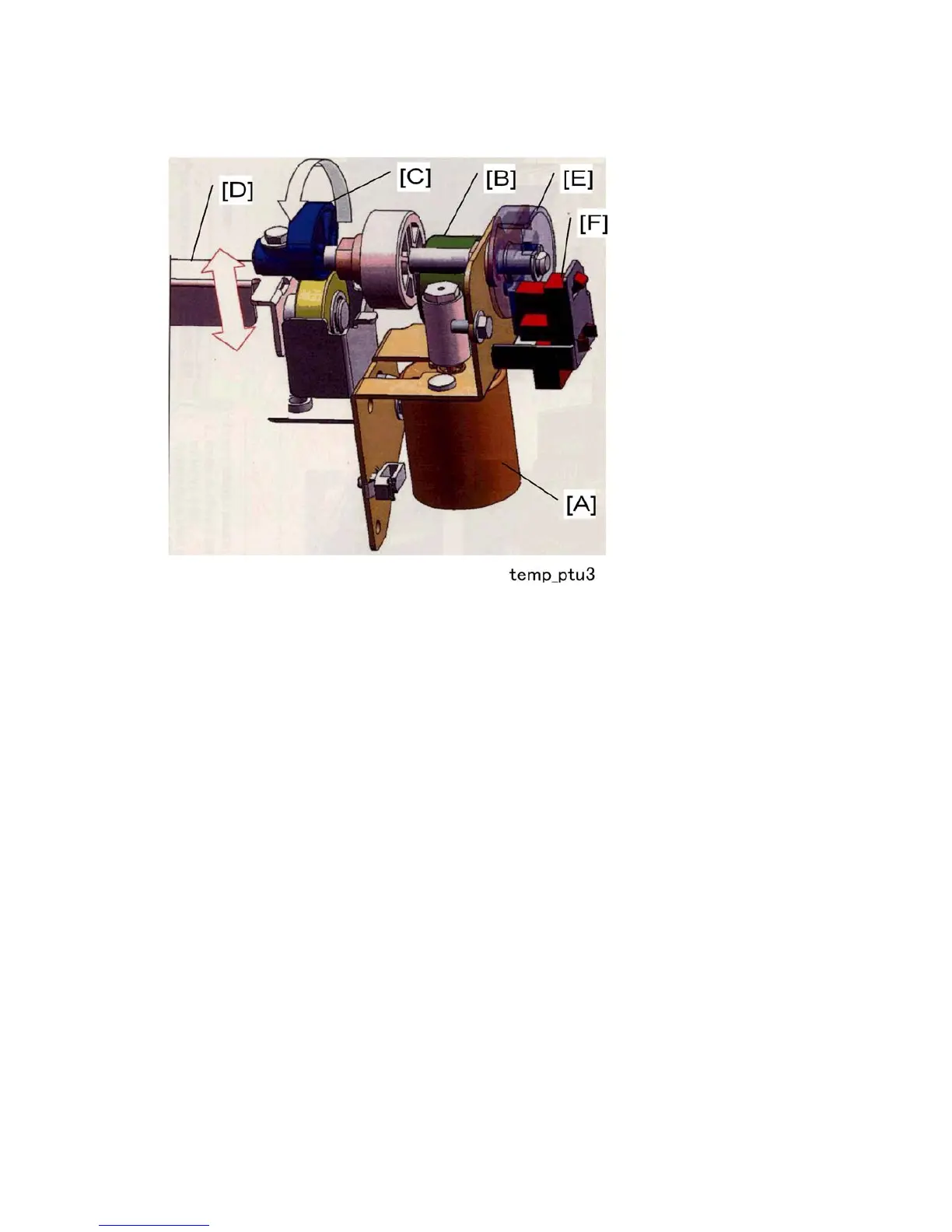

The PTR lift motor [A] operates the drive train [B] that rotates the cam [C]. The rotation of
the cam raises and lowers the lift plate [D].
A circular actuator [E] attached to the shaft of the cam shaft passes through the gap in the
PTR lift sensor [F]. The interaction of this actuator and sensor tells the machine when to
stop raising and lowering the PTR.
