R&S ZNB Series User Manual

GUI reference
R&S
®
ZNB/ZNBT
283User Manual 1173.9163.02 ─ 62

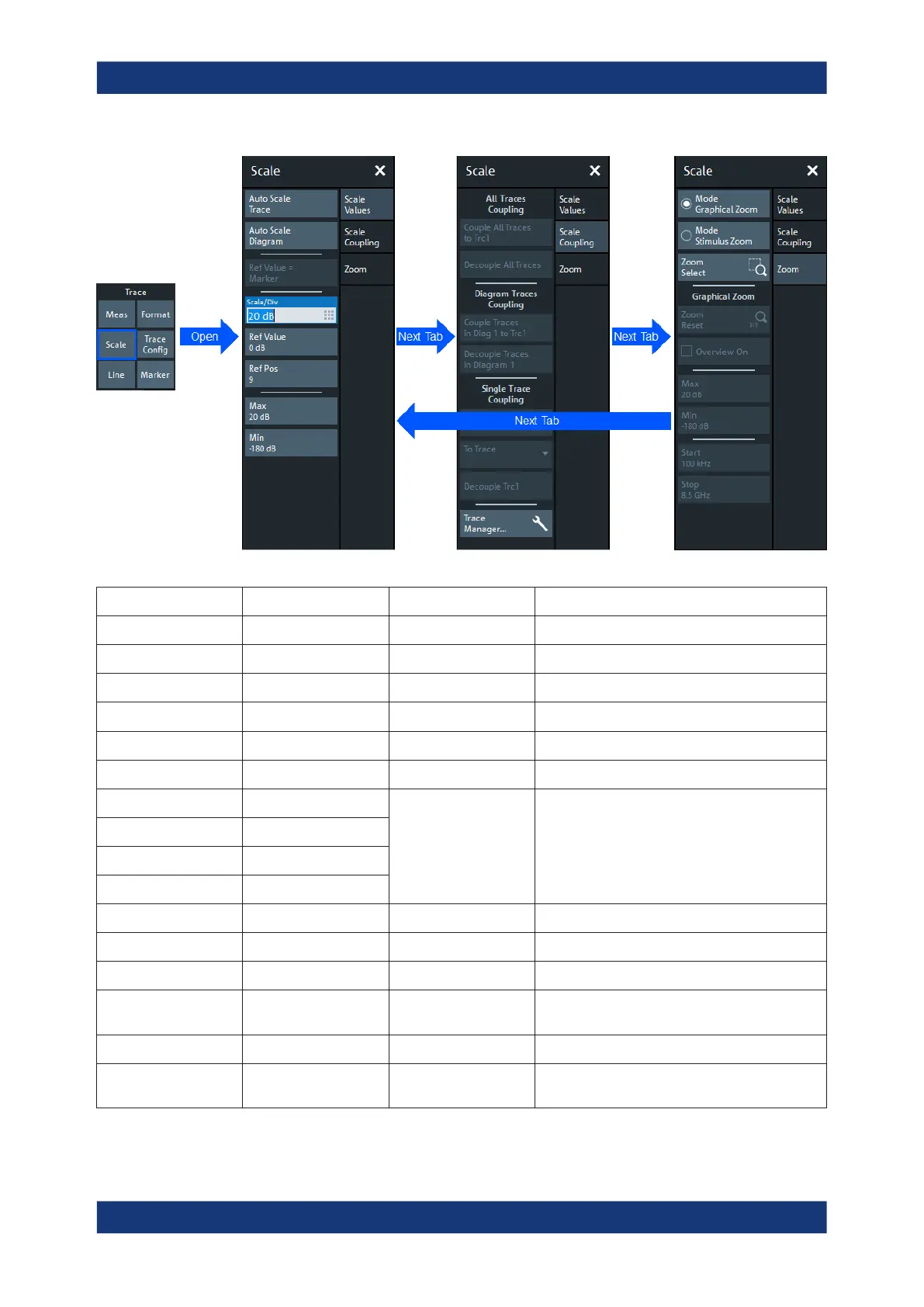

Table 5-1: Function keys and softtools
(Virtual) Hardkey Keyboard Shortcut Related Softtool Action
Trace – [Meas] Alt + Shift + A Meas softtool default
Trace – [Format] Alt + Shift + B Format softtool default
Trace – [Scale] Alt + Shift + C Scale softtool default
Trace – [Trace Config] Alt + Shift + D Trace Config softtool default
Trace – [Line] Alt + Shift + E Lines softtool default
Trace – [Marker] Alt + Shift + G Marker softtool default
Stimulus – [Start] Alt + Shift + J Stimulus softtool Selects an input field corresponding to the start,
stop, center or span of the active channel's current
sweep type.
Activates the corresponding tab on the "Stimulus"
softtool.
Stimulus – [Stop] Alt + Shift + K
Stimulus – [Center] Alt + Shift + F
Stimulus – [Span] Alt + Shift + H
Channel – [Pwr Bw Avg] Alt + Shift + L Power Bw Avg softtool default
Channel – [Sweep] Alt + Shift + M Sweep Softtool default
Channel – [Cal] Alt + Shift + P Cal softtool default
Channel – [Chan-
nel Config]
Alt + Shift + O Channel Config softtool default
Channel – [Trigger] Alt + Shift + R "Trigger" softtool opens the Trigger tab
Channel – [Off-
set Embed]
Alt + Shift + Q Offset Embed softtool default
Function Keys and Softtools
