GUI reference
R&S
®
ZNB/ZNBT
450
User Manual 1
173.9163.02 ─ 62

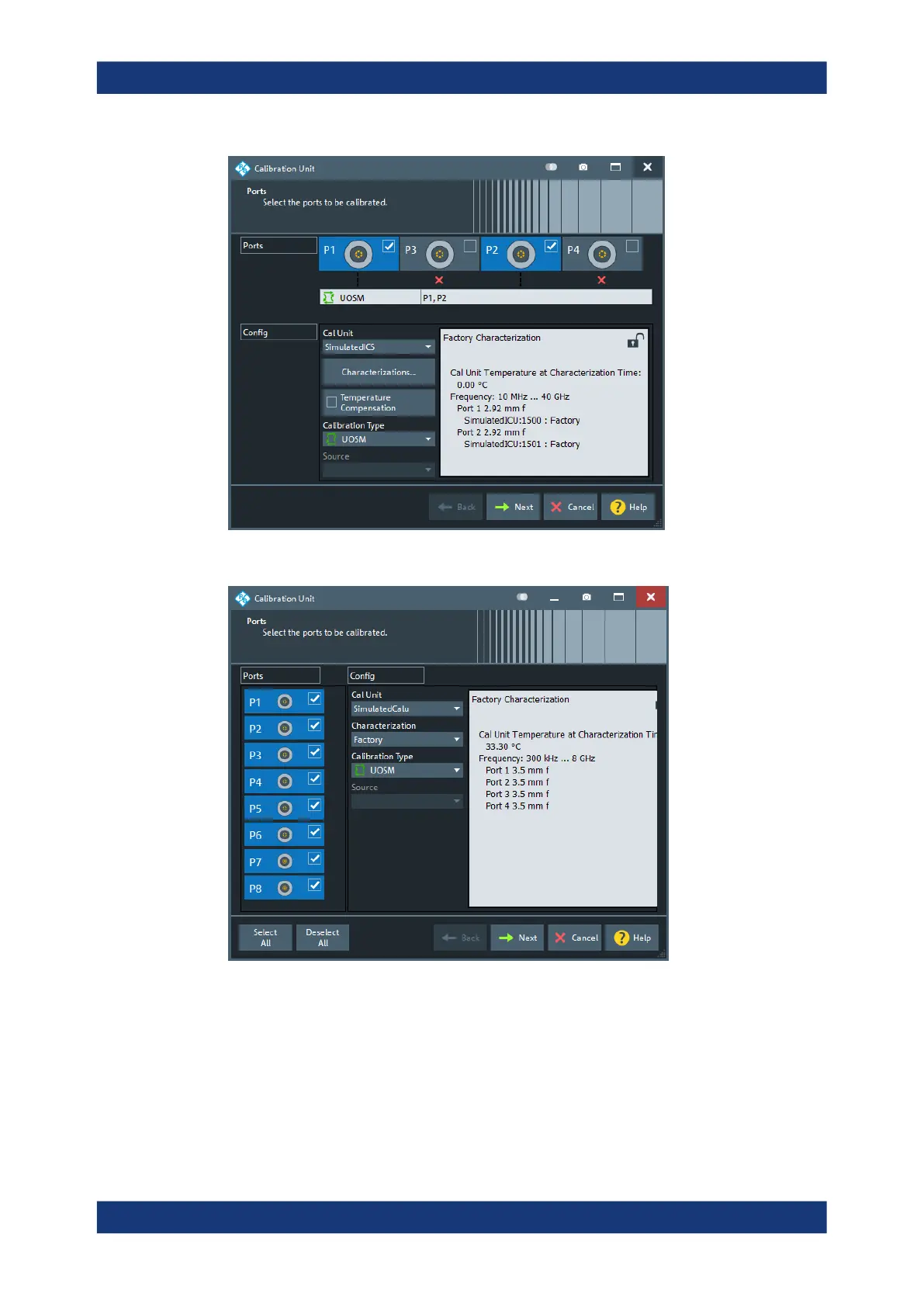

Figure 5-12: Calibration Unit wizard, step 1: Ports (Inline Calibration System)
Figure 5-13: Calibration Unit wizard, step 1: Ports (> 4 test ports)
Ports
Selects the test ports to be calibrated.
Note:
Calibration and port de-/activation.
Cal softtool
449
451
