In the upper part of the "Cal Unit" screen, the R&S ZNB/ZNBT shows the calibration
sweep diagrams for the currently measured S-parameter. The lower part visualizes the
active port assignment and the measurement progress.

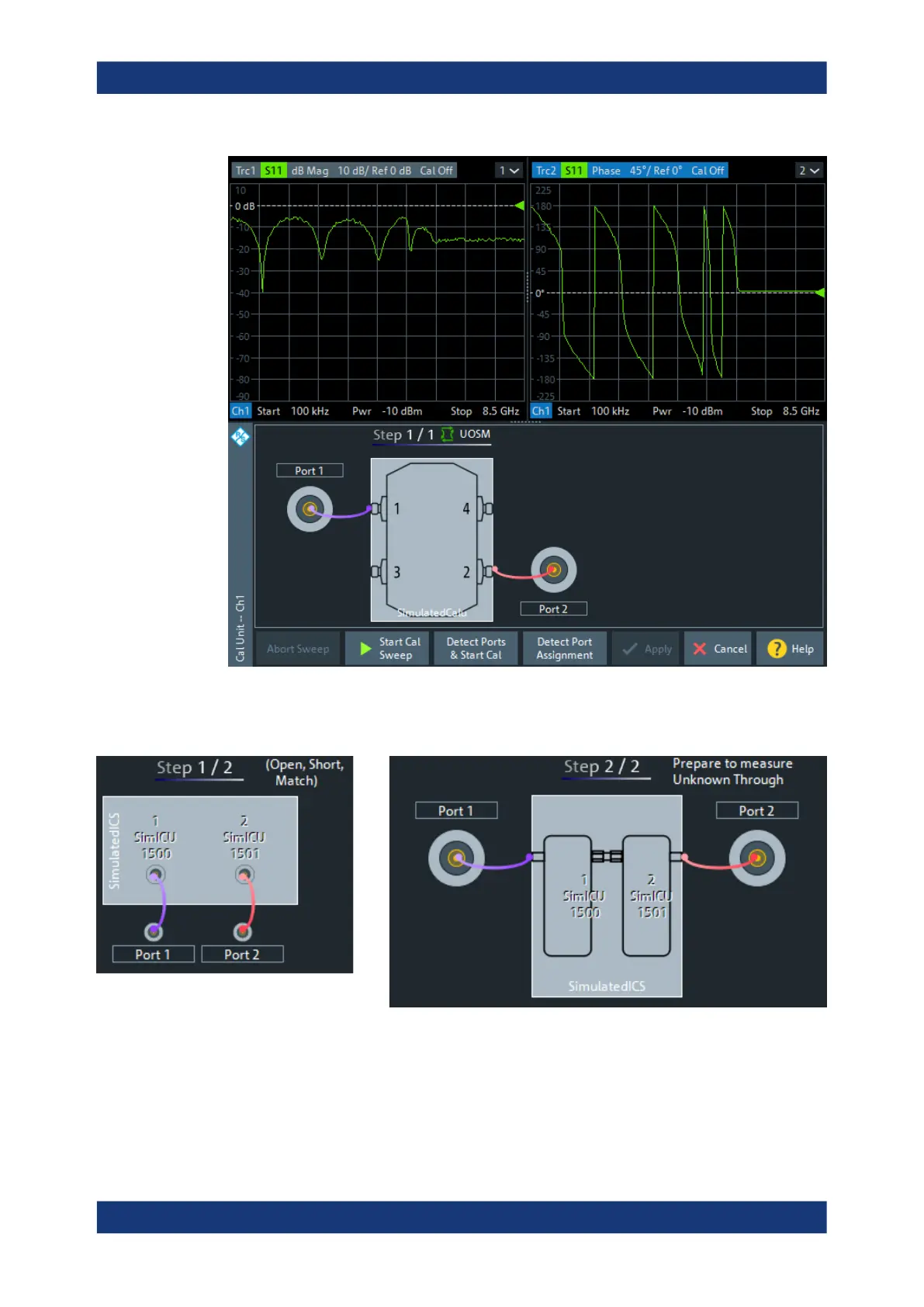

Figure 5-16: Automatic calibration: inline calibration system
Calibration Sweep Diagrams
During the calibration sweep, each diagram contains a single S-parameter trace and a
typical result trace for the measured calibration standard.
Cal softtool
