GUI reference
R&S
®
ZNB/ZNBT
464
User Manual 1
173.9163.02 ─ 62
The layout of the main panel depends on the number of test ports available:

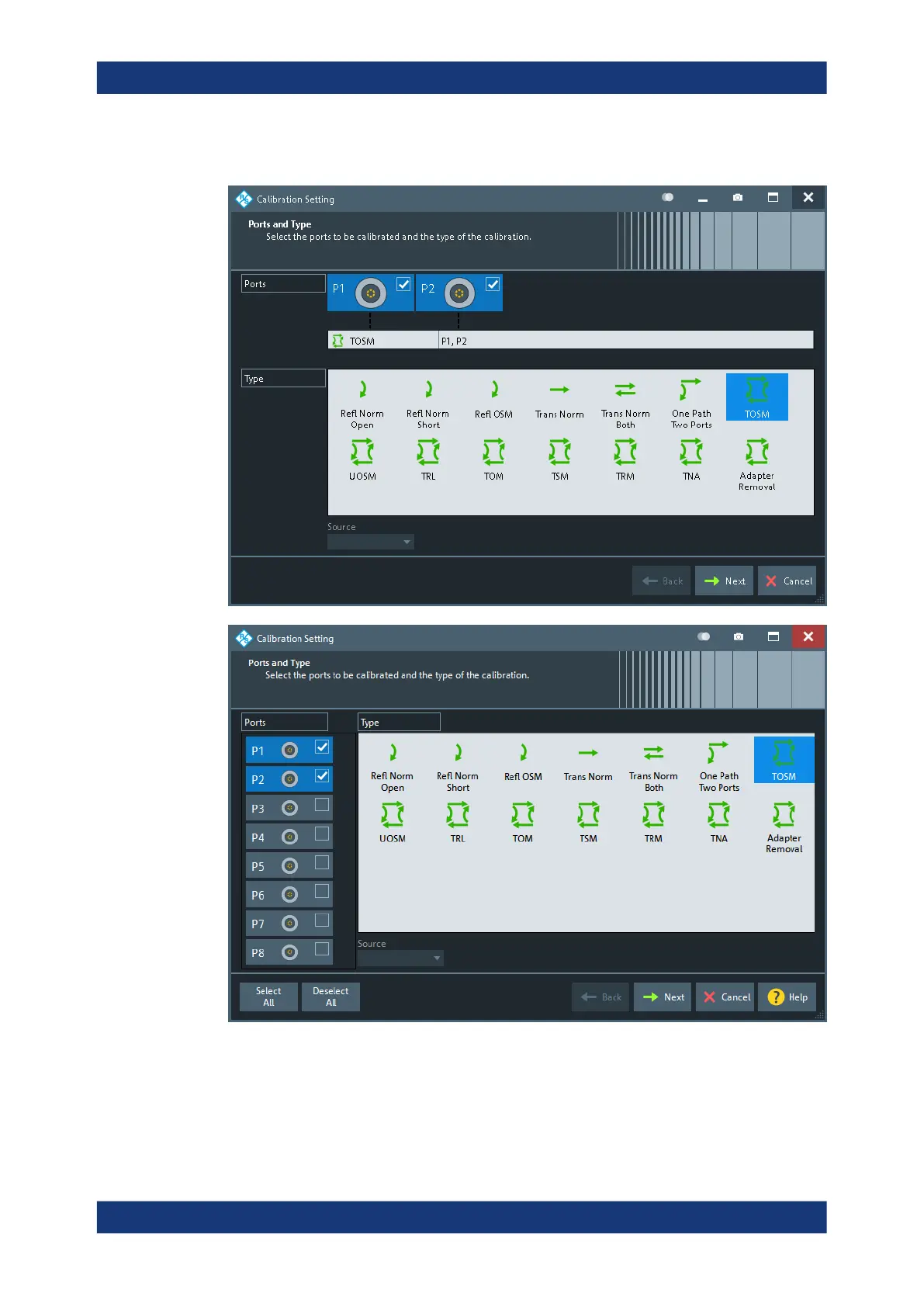

Figure 5-21: Calibration Presetting: Ports and T
ype (> 4 test ports)
Ports
Selects the test ports to be calibrated.
Note:
Calibration and port de-/activation.
Cal softtool
