R&S ZNB Series User Manual

GUI reference
R&S
®
ZNB/ZNBT
507User Manual 1173.9163.02 ─ 62

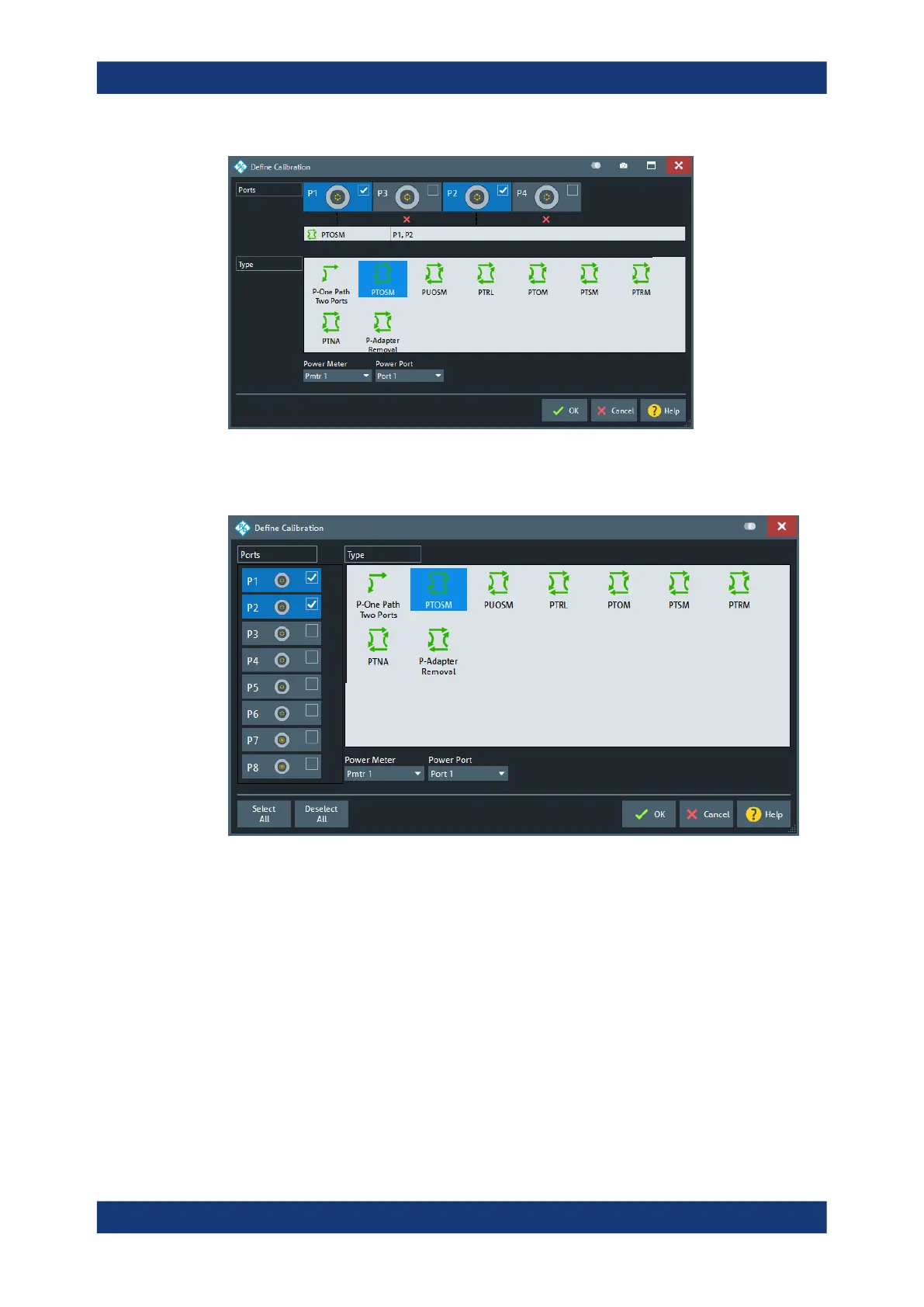

Figure 5-40: Define Calibration dialog (SMARTerCal)
The layout of the main panel depends on the number of test ports available.
Figure 5-41: Define Calibration dialog (SMARTerCal, >4 ports)
Ports
Selects the test ports to be calibrated.
It is possible to select any combination of two or more test ports. If you are only inter-
ested in a single port p, perform a two-port SMARTerCal for a port pair including p (as
Power Port).
Note: Calibration and port de-/activation.
The analyzer fimware automatically activates/deactivates ports during/after a (success-
ful) calibration:
●
Calibrated ports that were previously disabled, are automatically enabled as single-
ended logical ports.
●
An uncalibrated port that is not used by a measurement (i.e. the port is not required
by any trace of the related channel) is disabled.
Cal softtool
