GUI reference
R&S
®
ZNB/ZNBT
585
User Manual 1
173.9163.02 ─ 62

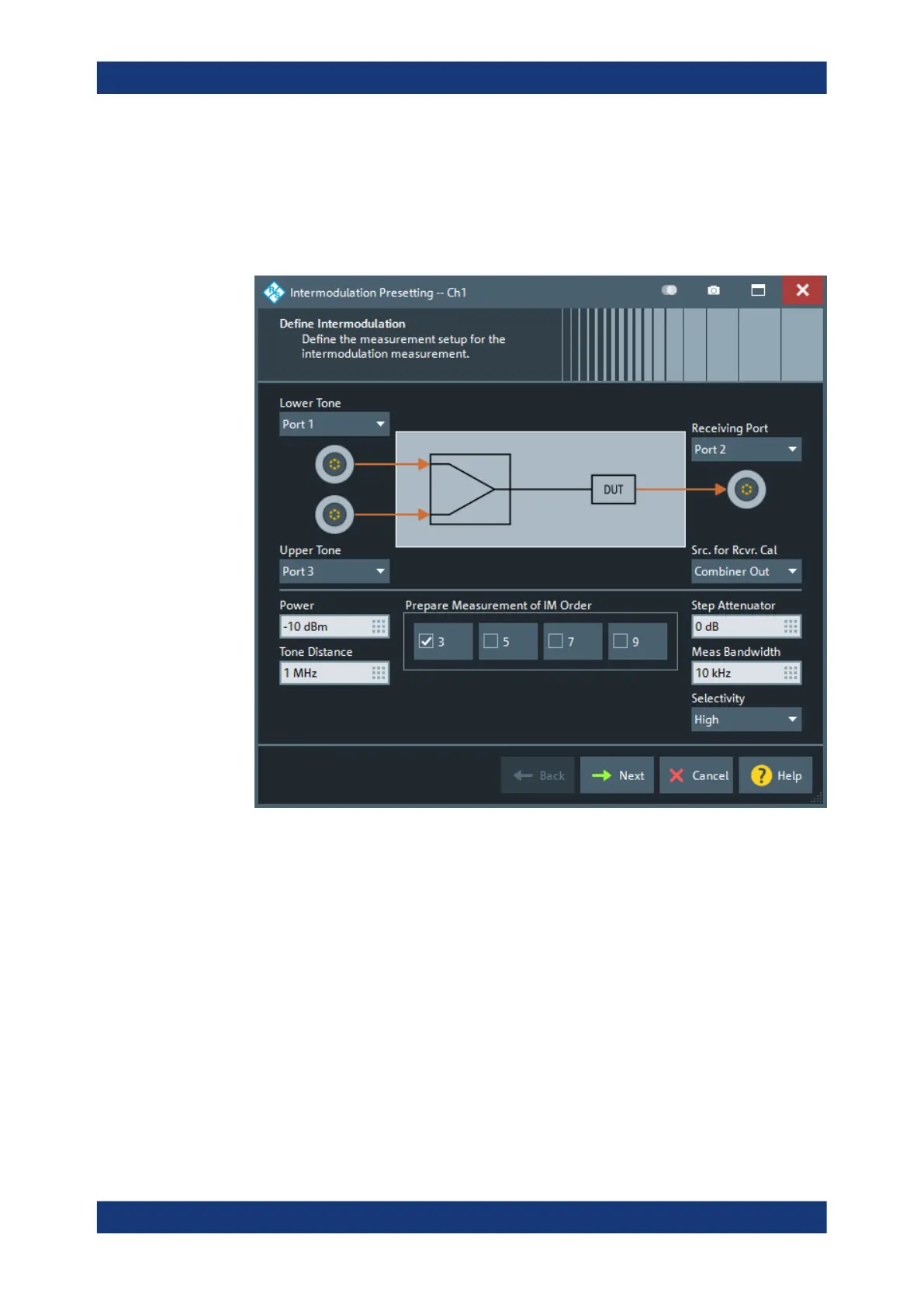

Access:
Channel – [Channel
Config] > "Intermod" > "Intermod Wizard..."
The wizard proceeds in 4 steps:
1.
Configure intermodulation measurement. Refer to
Chapter 5.12.4, "Intermod. tab"
,
on page 582.
2.
Define the (frequency or power) sweep ranges for the lower tone. Refer to
Chap-
ter 5.12.4.4, "Frequencies and Power dialog"
,
on page 591.
Channel Config softtool
584
586
