GUI reference
R&S
®
ZNB/ZNBT
604
User Manual 1
173.9163.02 ─ 62
Background information
Refer to
Chapter 4.5.7, "SMART
erCal"
,
on page 199 for background information
The wizard proceeds as follows:
1.
Specify the remaining (non-fixed) properties of the manual SMART
erCal (required
hardware, ports, connections etc.)
2.
Perform a SMART
erCal:

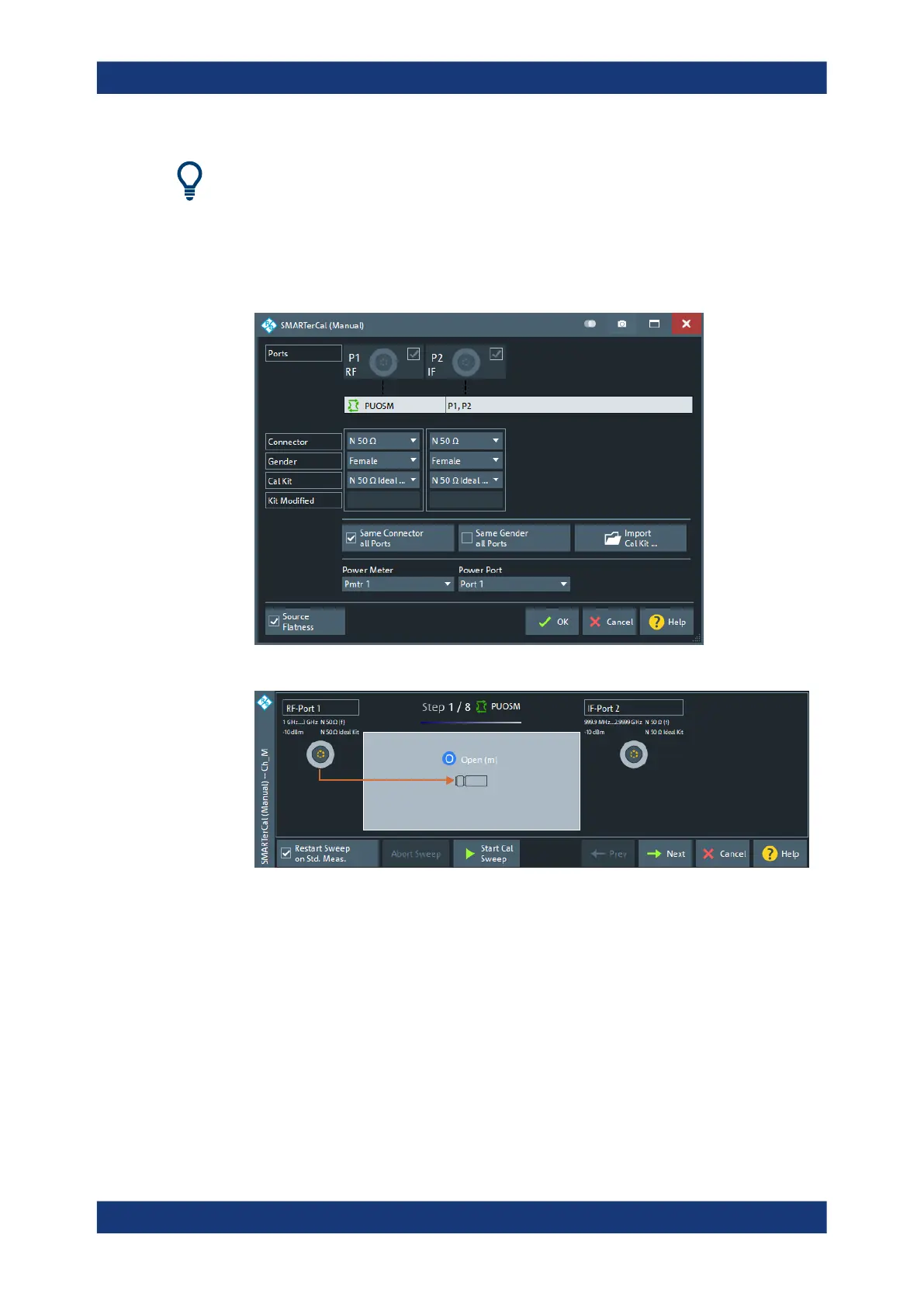

Figure 5-51: System Error Correction
Channel Config softtool
603
605
