Getting started
R&S
®
ZNB/ZNBT
82
User Manual 1
173.9163.02 ─ 62
Tip:
For a R&S
ZNBT with more than 4 ports, the graphical port representation is
replaced by a generic port list. The selection logic is unchanged.
4.

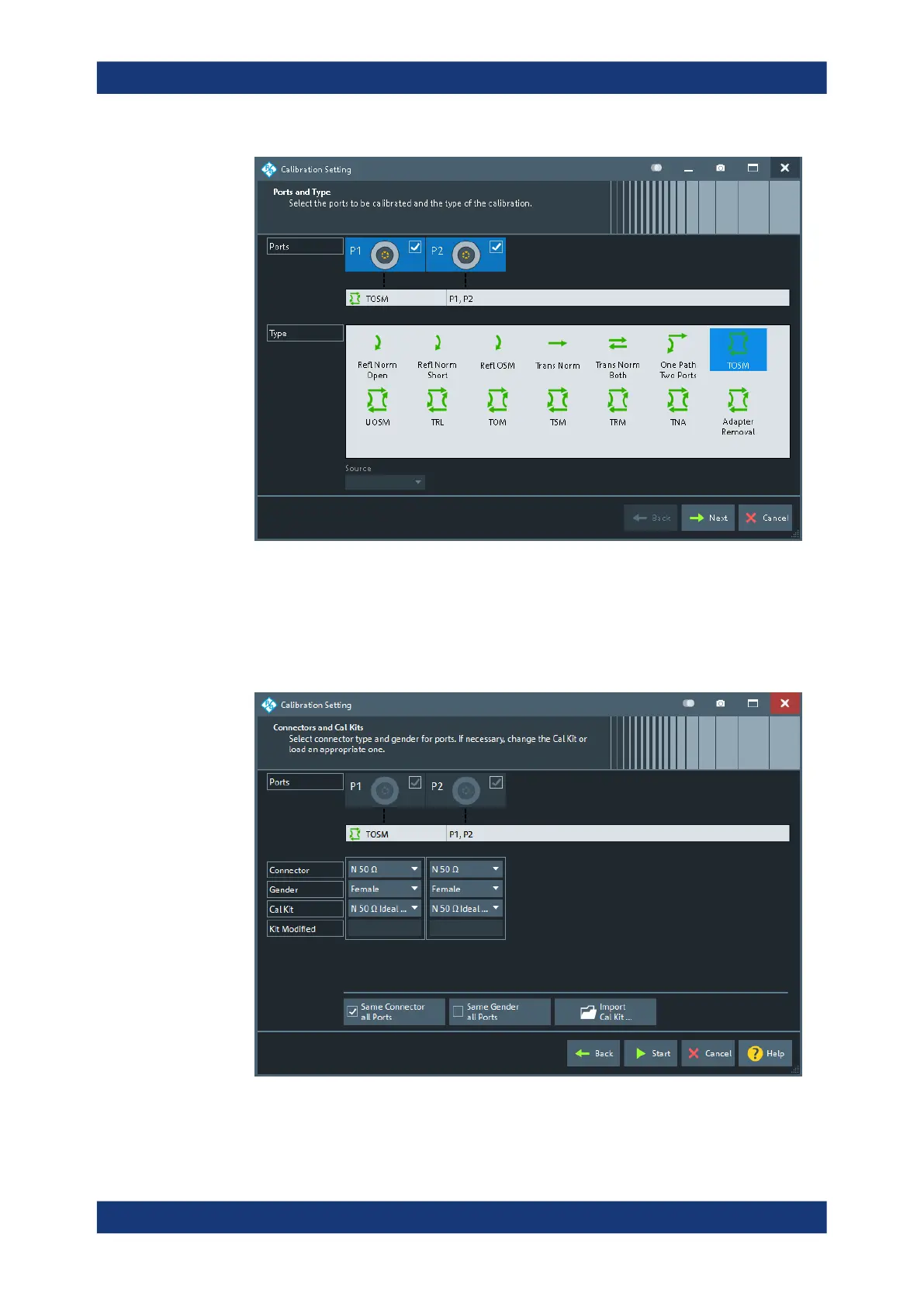

Select "Next" to proceed to the next page of the "Calibration Setting" wizard.
5.
Select the test port connector type and gender (here: N 50 Ω, female, correspond-
ing to a male Through standard), and the calibration kit (here: R&S
ZV
-Z121).
6.
T
ap"Start".
Performing measurements
81
83
