Copier D014/D015/D078/D079
SM 1-19 D014/D015/D078/D079
Installation

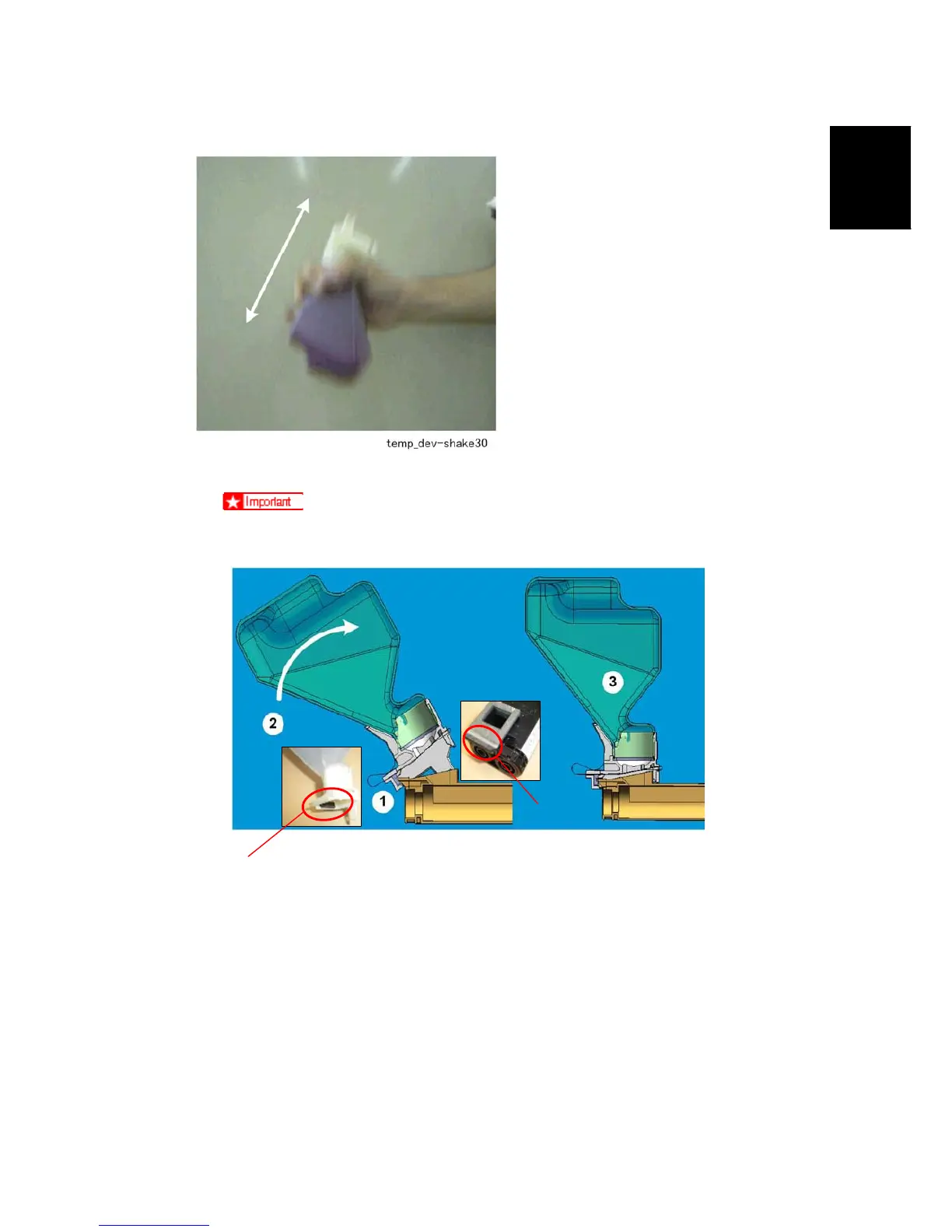

Vigorously shake the bottle up and down 10 to 15 times.
Hold the bottle as shown above, with the white component pointing up.
5. Mount a developer bottle on each PCU.
Set each bottle as shown at
{.
Swing the bottle
to the right until it snaps into place and is upright }.
Install the bottles from left to right in this order: Y C M K.
[A]
[B]
