Component Layout
B804/B805/D373/D374 26 SM

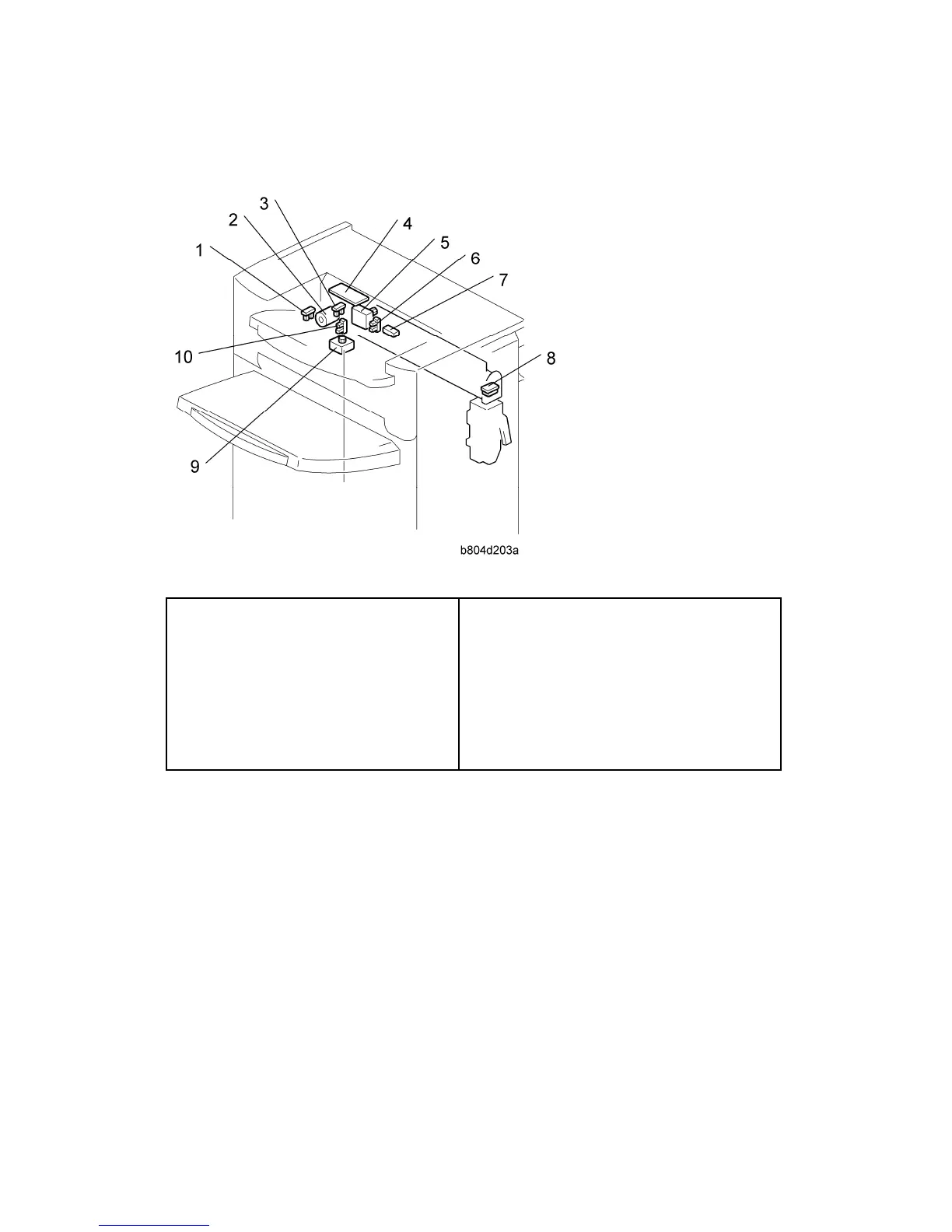

Punch Unit B702
1. Punch Encoder Sensor (S24)
2. Punch Drive Motor (M24)
3. Punch HP Sensor (S24)
4. Punch Unit Board (PCB3)
5. Paper Position Sensor Slide Motor
(M7)
6. Paper Position Slide HP Sensor (S22)
7. Paper Position Sensor (S3)
8. Punch Hopper Full Sensor (S4)
9. Punch Movement Motor (M9)
10. Punch Movement HP Sensor (S21)
