OVERALL MACHINE INFORMATION
SM 69 B830
Finisher
B830

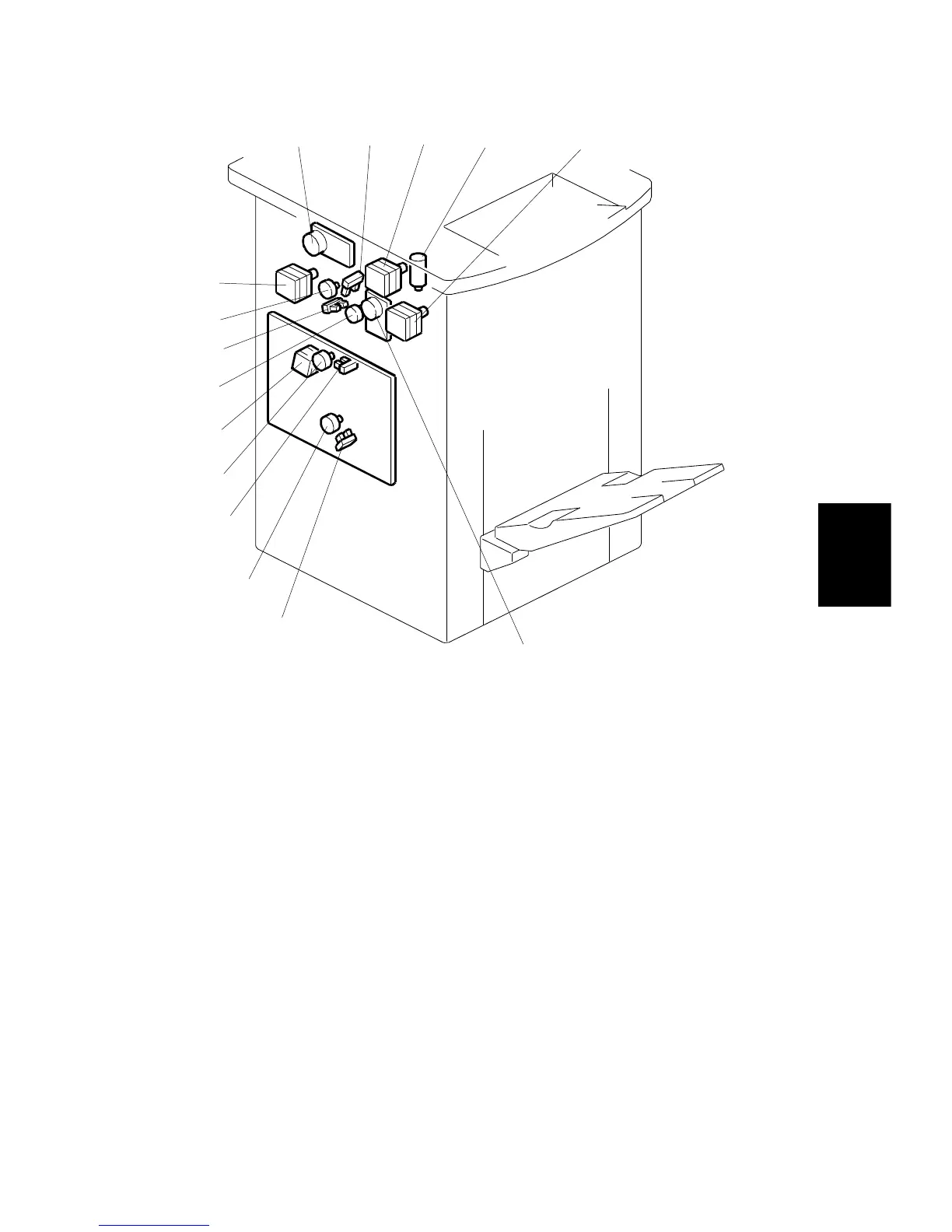

1. Upper Transport Motor
2. Stapler Junction Gate HP Sensor
3. Upper Tray Exit Motor
4. Shift Tray Lift Motor
5. Shift Tray Exit Motor
6. Lower Transport Motor
7. Pre-Stack Stopper HP Sensor
8. Pre-Stack Stopper Motor
9. Pre-Stack Junction Gate HP
Sensor
10. Pre-Stack Junction Gate Motor )
11. Pre-Stack Transport Motor
12. Upper Tray Junction Gate Motor
13. Upper Tray Junction Gate HP
Sensor
14. Stapler Junction Gate Motor
15. Punch Motor
B830V502F.WMF
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
