Counters
D014/D015/D078/D079 1-48 SM
6. Route the other end of the short cable to the VBCU below (= x2).

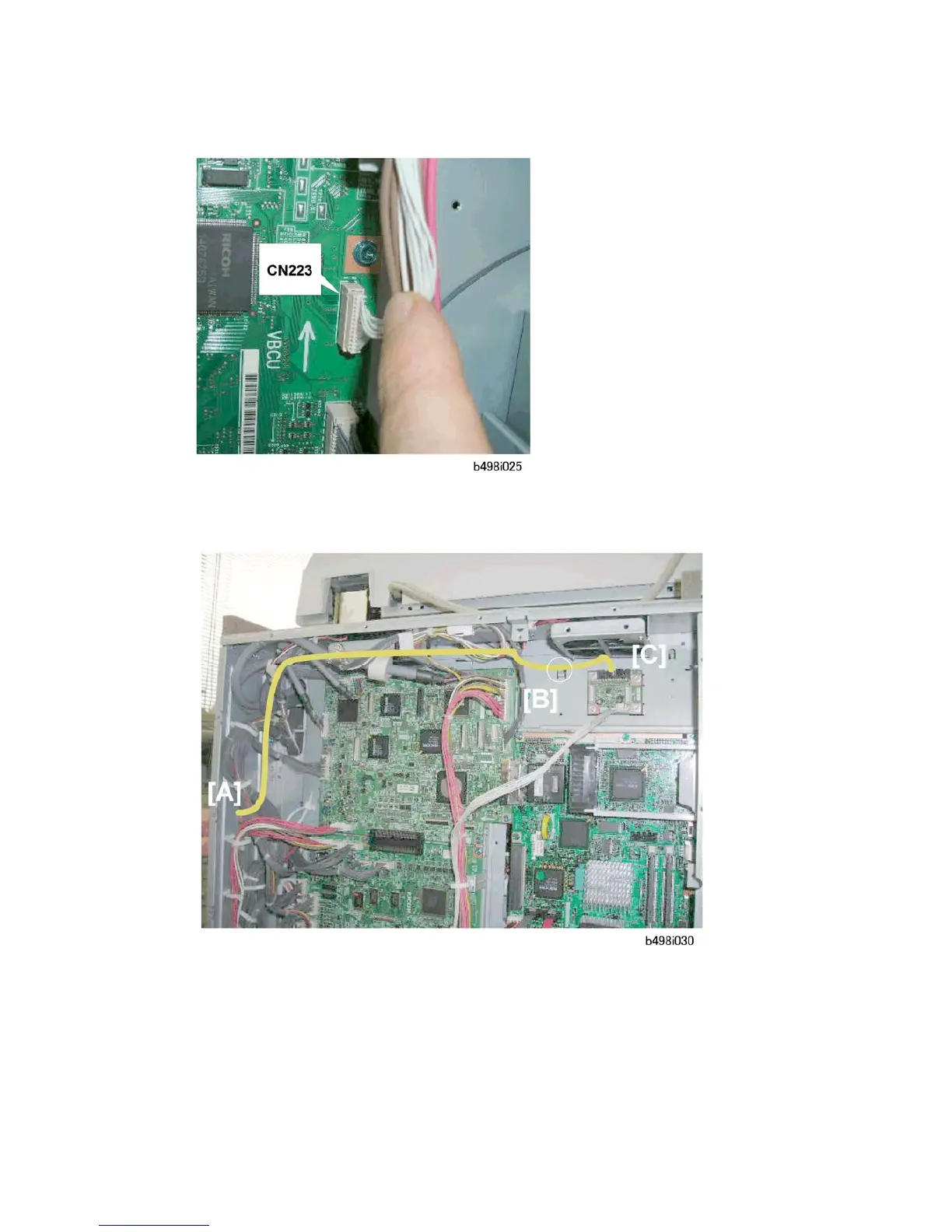

7. Connect the short cable to CN223 on the VBCU ( x1).
8. Route the harness of the key card through the hole [A] in the controller box as shown
above.
9. Clamp the harness at [B] then connect to the top of the circuit board [C] (= x1, x1).
10. Reattach the controller box cover and rear cover.
