LCT (B473), LCT Adapter (B699)
SM 1-57 D014/D015/D078/D079
Installation

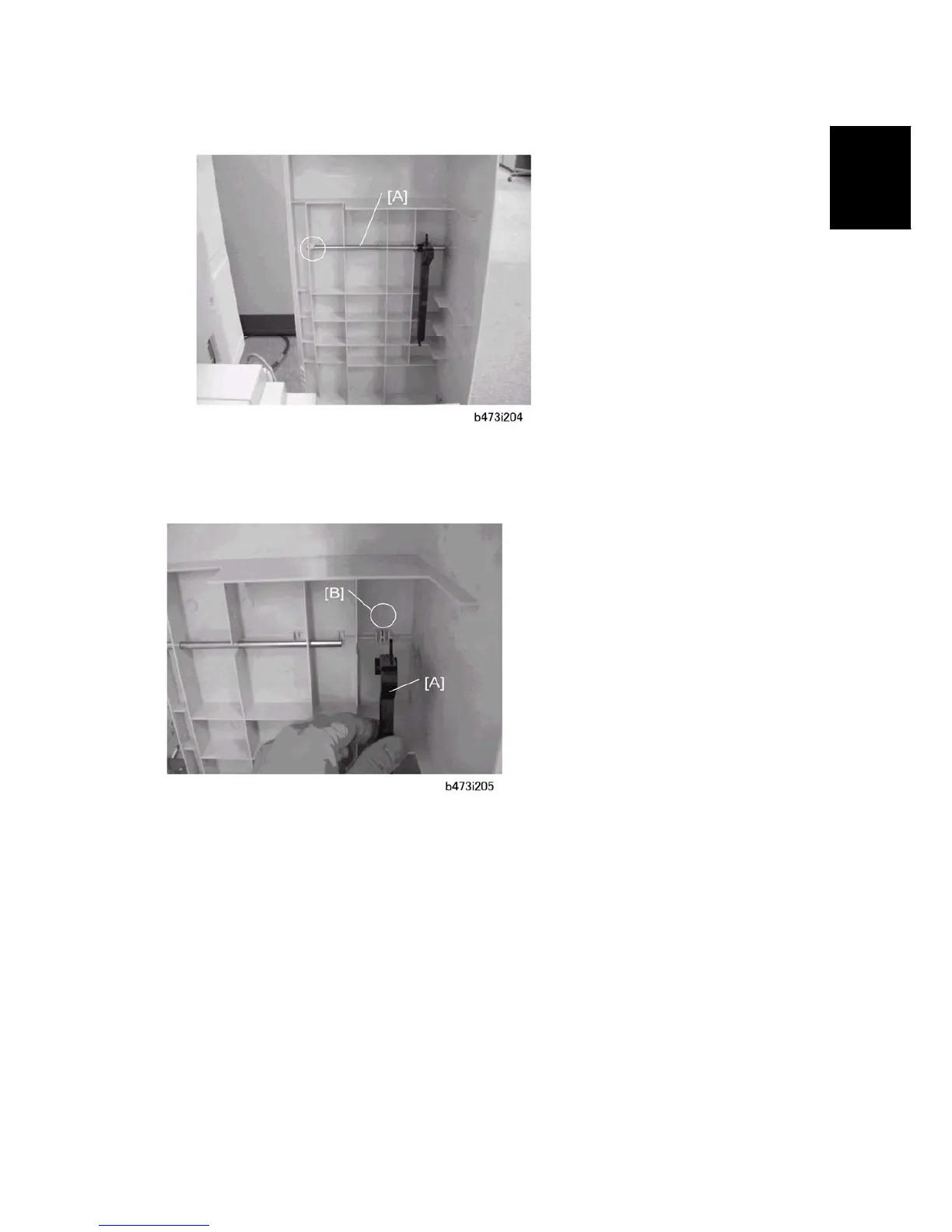

2. Remove the shaft [A] from under the LCT top cover ( x1).
1. Move the LCT end fence [A] from the A4 to the LT position (the position guide is written
on the LCT top cover at [B]).
2. Insert the shaft [C] ( x1).
3. Close the LCT top cover.
4. Do SP5959-5 and set the value to "1" (for "LT").
To Next Page
