Punch Unit (B702)
SM 1-87 D014/D015/D078/D079
Installation

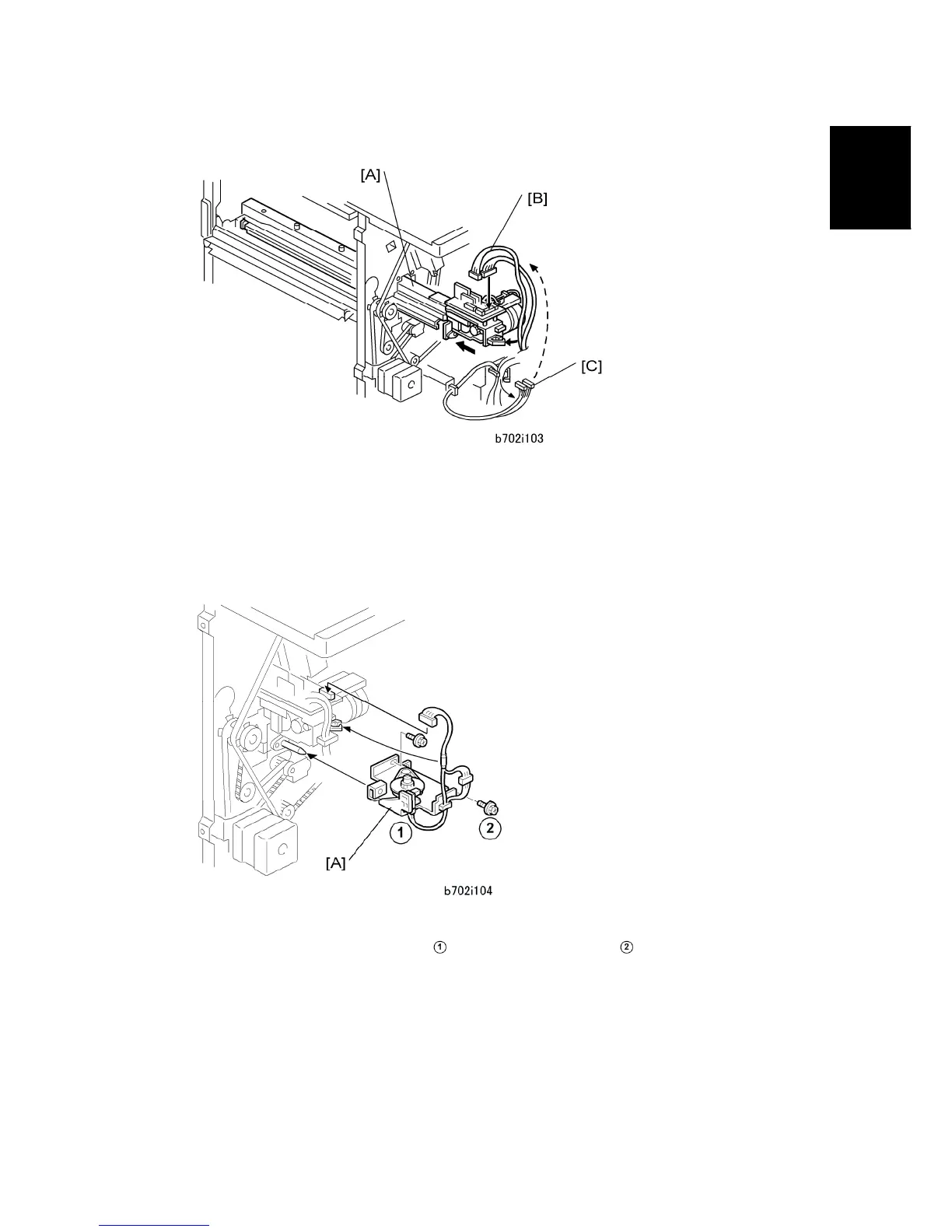

5. Slide the punch unit [A] on its rails into the finisher. Make sure that the pins engage
correctly at the front and rear.
6. Connect and attach the punch unit [B] ( x 2, = x 1).
The cables [C] are coiled and attached to the PCB.
Attach connectors to CN601 and CN602.
7. Attach the slide drive unit [A] to the finisher and connect it to the punch unit ( x 2,
x 1). Push in the slide drive unit at
when you attach screw .
8. Make sure that the punch unit moves freely and is not blocked by the screws.
