Punch Unit (B702)
SM 1-89 D014/D015/D078/D079
Installation
 This is the 4-pin connector.
16. Connect the cable and attach the punch-waste transport unit ( x 1, = x 1,  x 1).

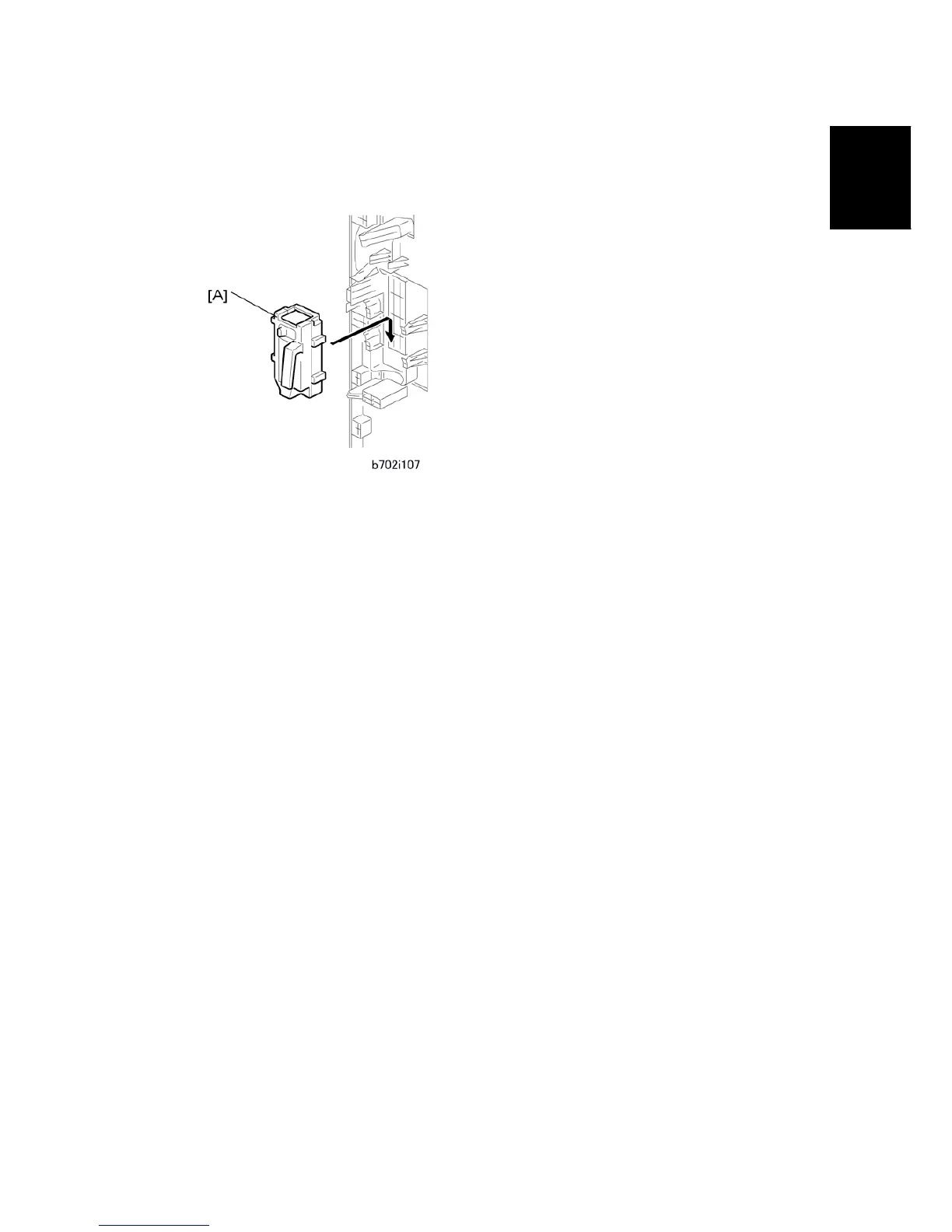

17. Set the hopper [A] in its holder.
